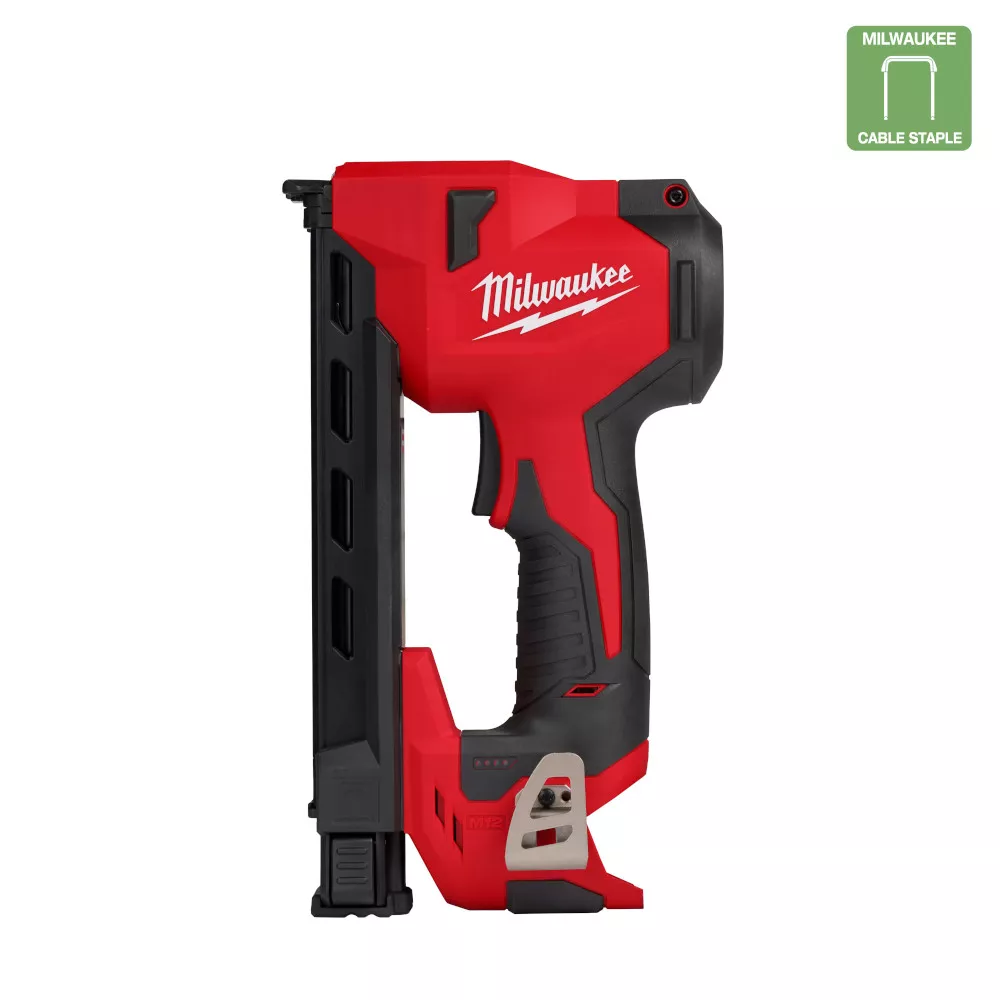

The MILWAUKEE® M12 Cable Stapler delivers unmatched stapling performance in the most compact battery-powered solution leading to a faster, more efficient rough-in process. Our compact, lightweight design provides users with access to tight stud bays and improved ergonomics when stapling overhead or during difficult-to-reach situations. Moveable cable guides ensure proper alignment and the coil-spring mechanism consistently sinks the staples to the appropriate depth when fastening NM-B Sheathed Cable (14, 12, 10 AWG) and low voltage cables, supporting peak stapling productivity. Only compatible with our 1″ insulated staples (sold separately), the M12 Cable Stapler gives the user the run-time needed to sink up to 1,200 staples on a fully charged M12 CP2.0ah battery.
Coil-spring mechanism consistently sinks the staples to the appropriate depth
Compact size eliminates the majority of manual staple installation needed for NM-B and low voltage cables
Improves speed of staple installation, completing rough-ins 2x faster than when using a hammer
Moveable Cable Guides
Staple Viewing Window
Battery Fuel Gauge
Reversible Belt Hook
LED Work Light
Dry Fire Lock Out
Two-Finger Trigger
Specifications
Brand Name
Milwaukee
Sub Brand
M12™
Item Name
Cable Stapler
Type
Cordless
Crown Size
3/4 in
Gauge
18 ga
Staple Capacity
45
Voltage Rating
12 VDC
Battery Capacity
2 Ah
Housing Material
Glass Filled Nylon
Handle Type
Barrel
Color
Gray/Red
Dimensions
6.5 in L x 2.65 in W x 11.6 in H
For Use With
Milwaukee MNM1-600 1 in Insulated Cable Staples
Standards
UL/cUL Listed
UPC
045242571680
