We haveMagnetic Speed Sensor MSP6710in our regular stock!

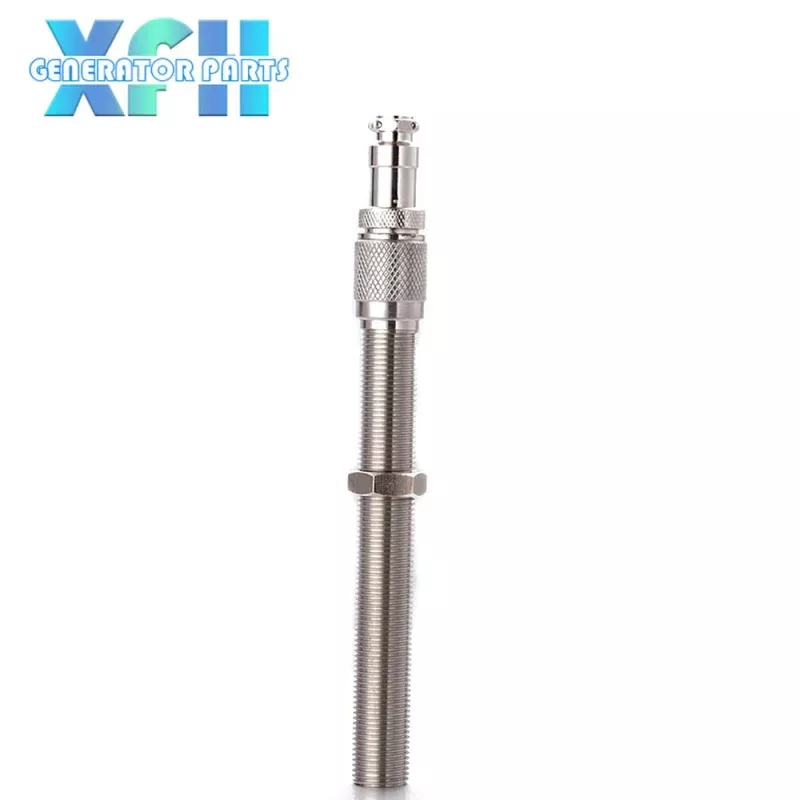

TheSpeed sensor MSP6710detects when ring gear teeth, or other ferrous projections, pass the tip of the sensor. Electrical impulses are produced by the sensors internal coil and sent to the speed control unit. The signal from the MSP677 Speed sensor MPU, teeth per second (Hz.), is directly proportional to engine speed. Speed sensors are available in various lengths in both U.S. and metric threads. Wire leads, military connectors, automotive connectors or stud terminals are also available. Over 30 styles currently available.
|
5/8-18 UNF Thread Speed Sensor |
|||||
|
Product |
Thread Length |
Harness Length |
Connector |
With Mating Connector |
|
|
MSP674 |
3in [76.2mm] |
High Output 913 |
Military |
No |
|
|
MSP675 |
3.19in [81mm] |
7in [178mm] |
Flying Leads |
No |
|
|
MSP676 |
5in [127mm] |
1ft [0.3m] |
Flying Leads |
No |
|
|
MSP677 |
3in [76mm] |
na |
Military |
No |
|
|
MSP678 |
4.86in [123.4mm] |
na |
Military |
No |
|
|
MSP679 |
3in [76.2mm] |
na |
Military |
Yes |
|
|
MSP6710Speed Sensor |
4.86in [123.4mm] |
na |
Military |
Yes |
|
|
MSP6719 |
2.37in [60.2mm] |
1ft [0.3m] Harness |
Flying Leads |
No |
|
|
MSP6720 |
3.86in [98.1mm] |
1ft [0.3m] Harness |
Flying Leads |
No |
|
|
MSP6721 |
3.19in [81mm] |
2.75in [70mm] |
Automotive |
No |
|
|
MSP6721C |
3.19in [81mm] |
2.75in [70mm] |
Automotive |
Yes |
|
|
MSP6722 |
2.37in [60.2mm] |
6in [152mm] |
Push-On Terminals |
No |
|
|
MSP6728 |
3.19in [81mm] |
6.25in [159mm] |
Packard |
No |
|
|
MSP6728C |
3.19in [81mm] |
6.25in [159mm] |
Packard |
Yes |
|
|
MSP6732 |
3.16in [80.3mm] |
3.25in [82.6mm] |
Dual Packard |
No |
|
|
MSP6732C |
3.16in [80.3mm] |
3.25in [82.6mm] |
Dual Packard |
Yes |
|
|
MSP6743 |
3.5in [89mm] |
High Output 1.2k |
8-32NC-2A Threaded Stud Terminals |
No |
