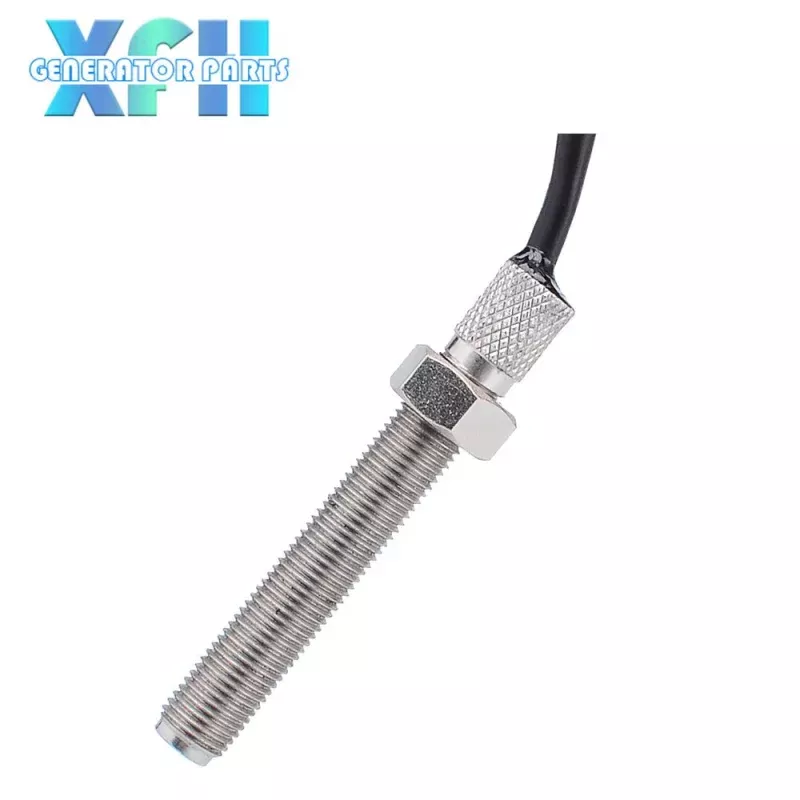

Generator MPU Magnetic Pickup Speed Sensor MSP6729 indicates when ring gear teeth, or other ferrous projections,pass the tip of the sensor.Electrical impulses are induced within the coil and sent to speed control unit.The signal from the magnetic speed sensor,teeth per second is directly proportional to engine speed.
| Generator MPU Magnetic Pickup Speed Sensor MSP6729 | |||
| 3/8 – 24 UNF Threaded | 3/4 – 16 UNF Threaded | ||
| MSP6729 | 6 Shielded Cable / 2.5 | MSP6724 | 3.5 With 3 Leads / Automotive Connector |
| MSP6730 | 6 Shielded Cable / 1.5 | MSP6734 | 3.5 With 4 Leads |
| MSP6731 | 6 Shielded Cable / 4 | MSP6735 | 3.5 With 3 Leads / Packard Connector |
| MSP6742 | 1 Shielded Cable / 2.7 | MSP6744 | 2.29 With 8/32 Stud Terminals / 1200 Ohms |
| 5/8 – 18 UNF Threaded | |||
| MSP674 | 3 Without Mating Half Connector / High Output | MSP6710 | 5 Mating Half Connector / Weather Boot /Military Style Connector |
| MSP675 | 3 With 7 Leads | MSP6720 | 4 With 6 Leads |
| MSP676 | 5 With 12 Leads | MSP6721 | 3 With 3 Leads / Automotive Connector |
| MSP677 | 3 Without Mating Half Connector / Military Style Connector | MSP6728 | 3 With 10 Leads / Packard Connector |
| MSP678 | 5 Without Mating Half Connector / Military Style Connector | MSP6732 | 3 With 4 Leads / Dual Output / Dual Packard Connectors |
| MSP679 | 3 Mating Half Connector / Weather Boot /Military Style Connector | MSP6743 | 3.75 With 8/32 Stud Terminals / 1200 Ohms |
| M16 x 1.5 Threaded | |||
| MSP6714 | 3 Without Mating Half Connector / Military Style Connector | MSP6723C | 3 With 3 Leads / Automotive Connector /Mating Half Connector |
| MSP6715 | 3 With Mating Half Connector / Weather Boot /Military Style Connector | MSP6739 | 3 With 3 Leads / Packard Connector / With S Secondary Lock |
| MSP6723 | 3 With 3 Leads / Automotive Connector | MSP6745 | 6 Without Mating Half Connector / Military Style Connector |
| M18 x 1.5 Threaded | |||
| MSP6741 | 3.25 With 9 Leads / Metri-Pack Connector | MSP6746 | 3.4 With 16 Leads / Commercial Connector |
