Product Description

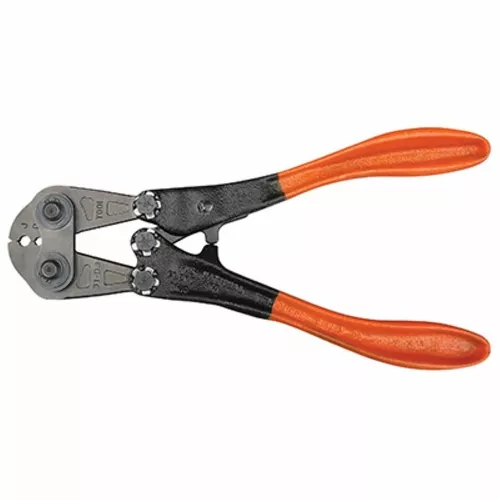

NICOPRESS 31DJ CRIMP TOOL NEWFeatures:Shipped with detailed instructions showing the proper tool operation and adjustment. Tools and sleeves are marked for easy field identificationNo. 31 Tool is used principally for the splicing of communication sizes of line wire. Available in two groove combination in compression grooves C, D, and J. Popular groove combinations are DJ, and CJ.Catalog Number Tool GrooveWeight Lbs (kg)31-CJC, J 2.231-DJD, J 2.2Features:51-Orange, 51-Peach and 51-Plum Must be used when splicing ACSR with separate core and cover sleeves.Single sleeves for ACSR can be compressed in the front groove of the above tools55-Plum-Orange tool Recommended for single sleeve because of its broader coverage.53-XPJ Tool 3-groove tool.This tool will accommodate any Nicopress item with a stock number ending in X, P or J. Catalog NumberTool GrooveWeight/100 (lbs)51-ORANGEORANGE 640 51-PEACHPEACH 640 51-PLUMPLUM 650 53-XPJJ, P, X 480 55-PLUM: ORANGEPLUM, ORANGE 490
