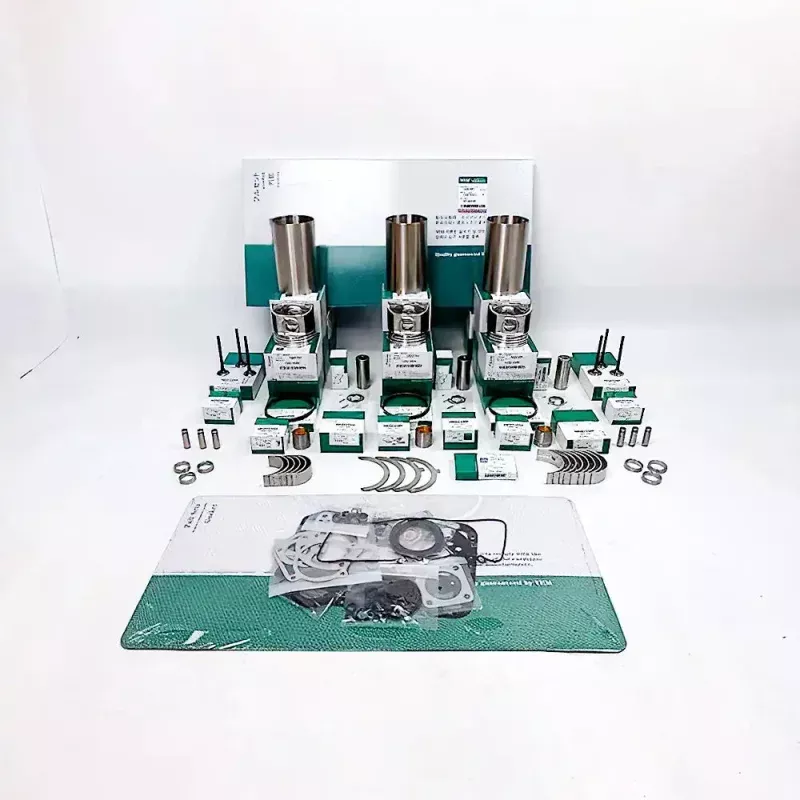

Overhaul Rebuild Kit for Kubota D1005
Note:The Cylinder Liner is Semi-finished type
Application:Models with Kubota D1005 EngineRefer Kubota Tractor B21, B2320DT, B2320DTN(-1), B2320DTWO, B2320HSD, B2320HSDN, B2710HSD, B7510D, B7510DN, B7510HSD, B7510HSDTR, BX2660D, F2260, F3060, ZD25F, ZD326P, ZD326RP, ZD326S
Piston Part Number:16050-21113,1605021113
Piston Ring Part Number:16271-21050,1627121050
Cylinder Liner Part Number:16050-02310,1605002310
Specification:
Piston Size:Total Length(TL):68.5mm
Diameter:76mm
Cylinder Liner Size:Total Length(TL): 145.0mmInner Diameter(ID): 76.0mmOuter Diameter(OD): 79.5mm
Application:Models with Kubota D1005 EngineRefer Kubota Tractor B21, B2320DT, B2320DTN(-1), B2320DTWO, B2320HSD, B2320HSDN, B2710HSD, B7510D, B7510DN, B7510HSD, B7510HSDTR, BX2660D, F2260, F3060, ZD25F, ZD326P, ZD326RP, ZD326S
Including:1 Set of Overhaul Gasket Kit3 Cylinder Liners,Semi-finished product3 Pistons,STD3 Piston Pins6 Snap Rings3 Rod BushingsSet Rings For 3 Pistons,STD1 Set of Main Bearings1 Set of Rod Bearings1 Set of Thrust Bearings3 Intake Valves3 Exhaust Valves6 Valve Guides3 Intake Valves Seats3 Exhaust Valves Seats
