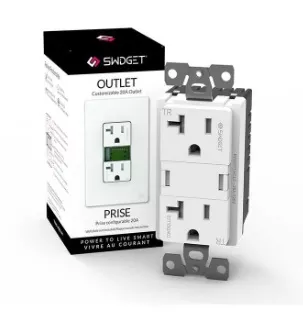

Duplex 20 A Outlet with 125 VAC modular Smart Home enabled device. The 20A Outlet has the ability to allow interchangeable Swidget Inserts to be installed, removed or replaced – making Swidget the optimal choice for building renovations and new construction. The Swidget 20A Outlet uses a simple interface, making installation easy.
Specifications
| Brand Name | Swidget | Item Name | Duplex Outlet Receptacle |
| Voltage Rating | 125 VAC/5 VDC | Amperage Rating | 2/20 A |
| Wattage | 2400 W | NEMA Configuration | 5-20R |
| Conductor Size | 12 AWG | Color | White |
| Maximum Load Capacity | 1 hp | Terminal Connection | Screw |
| Dimensions | 1.62 in L x 1.53 in W x 2.803 in H | Temperature Rating | 14 – 104 °F |
| Environmental Conditions | Indoor, UL 94 5VA Flammability Rating | Standards | UL 498, UL 1310 Listed, CSA C22.2 No. 42, No. 223 |
