FEATURES:• Long barrel maximizes number of crimps and provides premium wire pull-out strength and electrical performance• Inspection window to visually assure full conductor insertion• Color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection• Tin-plated to inhibit corrosion• UL Listed and CSA Certified to 35 KV** and temperature rated to 90°C when crimped with Panduit and specified competitor crimping tools and dies• UL Listed and CSA Certified for wide wire range-taking capability when crimped with Panduit® Uni-Die ™ Dieless Crimping Tools‡• Tested by Telcordia – meets NEBS Level 3• Meets J-STD-607-A and TIA-942 requirements for network systems grounding applications
Specifications
| Brand Name | Panduit | Sub Brand | Pan-Lug™ |

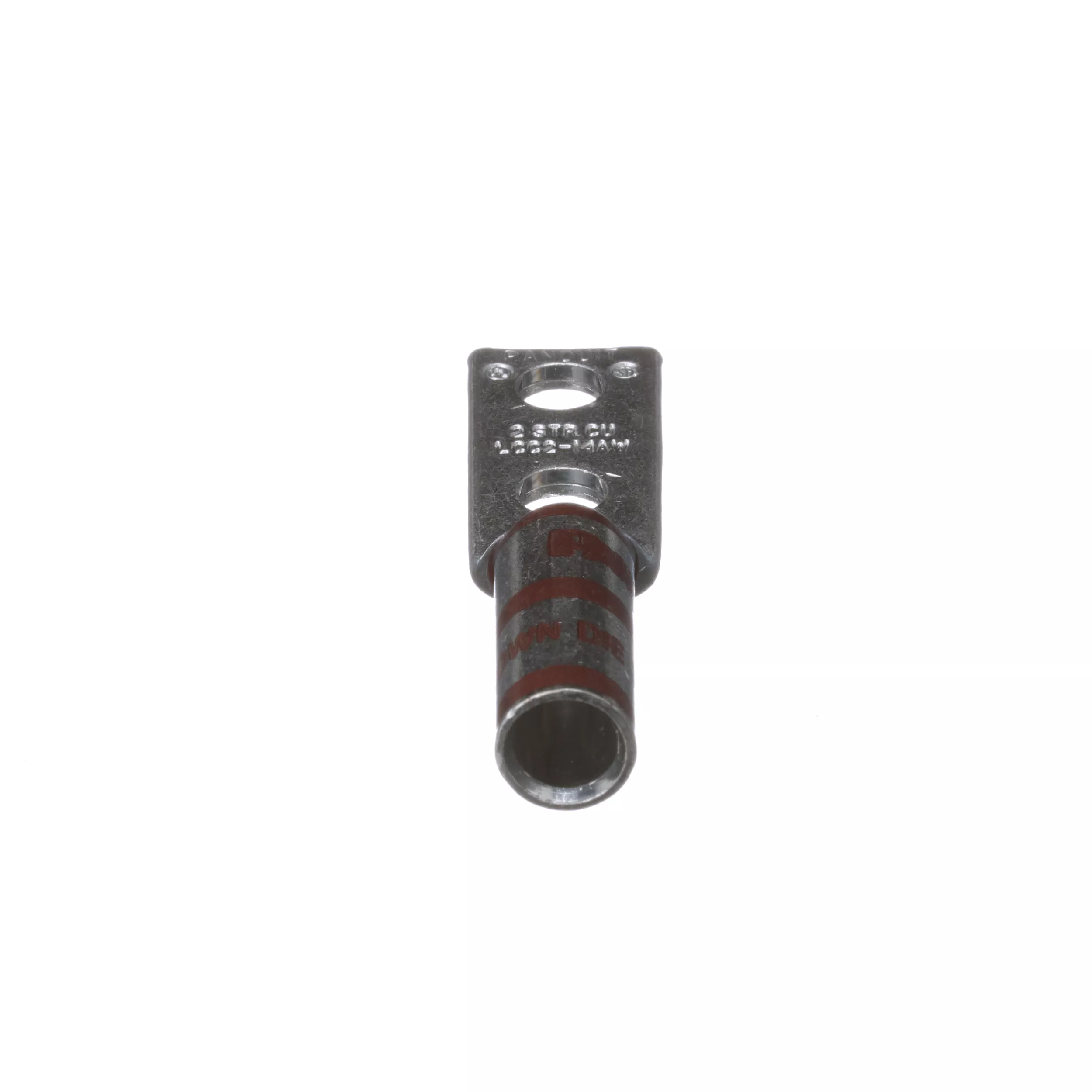

| Item Name | Compression Lug | Type | Type LCC-W |
| Number of Holes | 2 | Stud Size | 1/4 in |
| Barrel Length | 1.16 in | Overall Length | 2.67 in |
| Color Code | Brown | Material | Copper |
| Voltage Rating | 35000 V | Barrel Type | Long with Inspection Window |
| Tongue Type | Standard | Finish | Tin Plated |
| Standards | 486A-486B File E52164 | UPC | 074983797899 |
