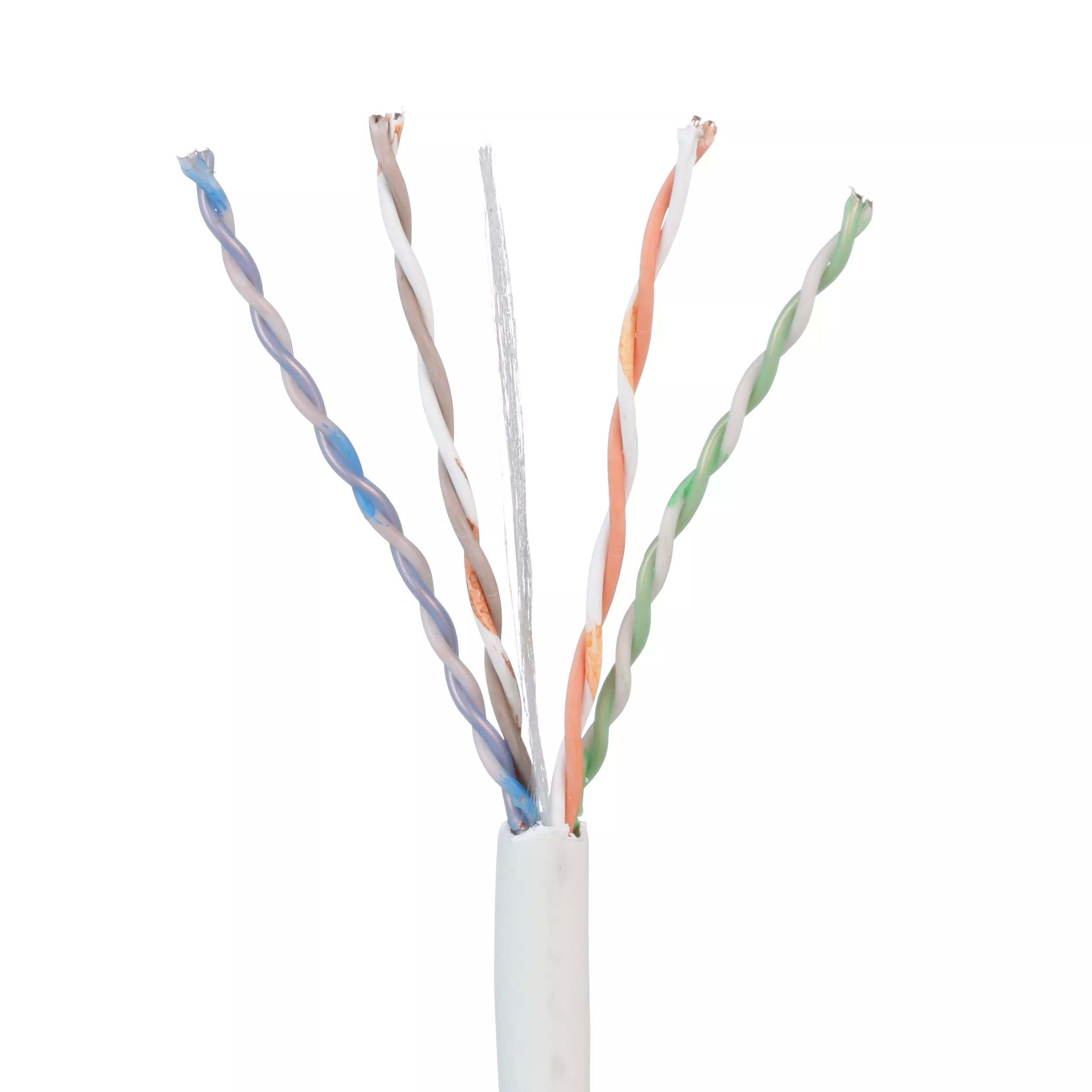

Category 6 copper cable, plenum (CMP), 4-pair, U/UTP, conductors are 23 AWG construction with FEP/polyolefin insulation, twisted in pairs, separated by a tape, and protected by a low smoke, flame-retardant PVC jacket, white.Interoperable and backward compatible, the Panduit TX6™ Cabling System provides design flexibility to protect network investments well into the future. With certified performance to the ANSI/TIA-568-C.2 Category 6 and ISO 11801 Class E standards, this system will support the following applications:• Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), 1000BASE-T (Gigabit Ethernet),10GBASE-T (10 Gigabit Ethernet over limited distances as specified in the industry10GBASE-T standards)• 155 Mb/s ATM, 622 Mb/s ATM, 1.2 Gb/s ATM• Token Ring 4/16
Specifications
| Brand Name | Panduit | Sub Brand | PanNet |
| Item Name | Category 6 Cable | Type | Copper Cable |
| Wire Gauge Size | 23 AWG | Conductor Material | Copper |
| Length | 1000 ft | Insulation Material | Fluorinated Ethylene Propylene |
| Jacket Material | PVC | Jacket Color | White |
| Number of Conductors | 8 | Temperature Rating | -20 to 75 °C |
| Weight | 29 lb/1000 ft | Standards | ANSI/TIA-568-C.2 Category 6, Plenum – NFPA 262, Riser – UL1666, Meets IEEE 802.3af and IEEE 802.3at For PoE Applications |
| Application | Indoor | UPC | 074983282272 |
