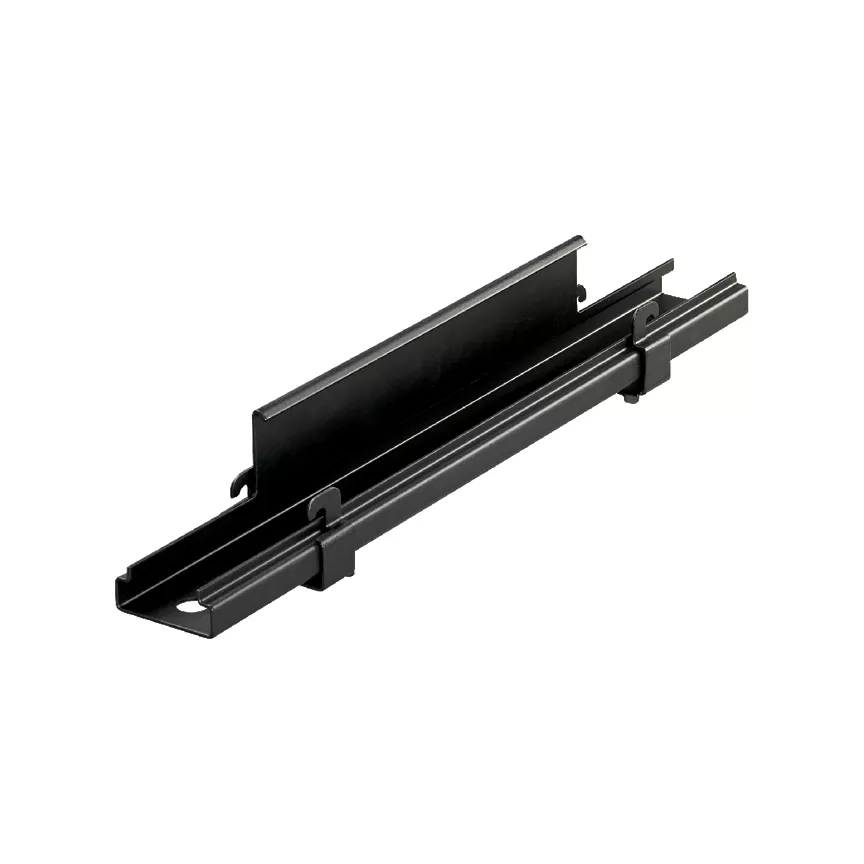

The black powder coated bracket is 2.41″ (61.2 mm) high, 16.5″ (419.1 mm) long, 2.04″ (51.8 mm) wide, and 16.5″ (419.1 mm) deep. It is designed to support a 12″ (304.8 mm) wide Wyr-Grid® Pathway from the ceiling using a pair of 1/2″ (12 mm) threaded rod drops. The hardware for attaching the bracket to a threaded rod is sold separately. The black powder coated bracket comes in standard packages of one.
Specifications
| Brand Name | Panduit | Sub Brand | Wyr-Grid® |
| Item Name | Trapeze Bracket | Material | Steel |
| Type | Overhead | Dimensions | 16-1/2 in L x 2.04 in W x 2.41 in H |
| Color/Finish | Black/Powder Coated | For Use With | 1/2 in Threaded Rod |
| Includes | (2) Clips, (2) 1/4-20 x 3/8 in Hex Head Cap Screws | Standards | RoHS Compliant |
| Application | Within Data Centers, Connected Buildings and Industrial Automation Application, FiberRunner Pathways | UPC | 074983611911 |
