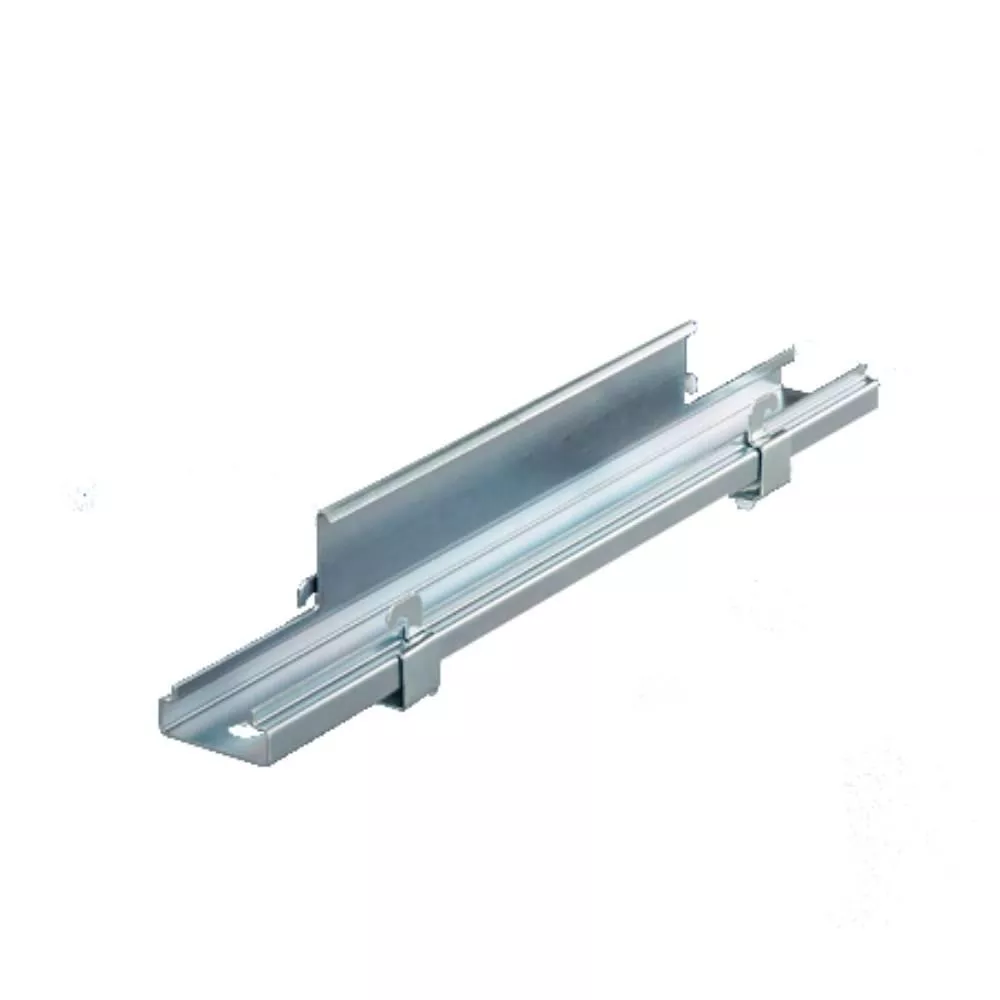

The electro zinc-plated bracket in silver is 2.41″ (61.2 mm) high, 16.5″ (419.1 mm) long, 2.04″ (51.8 mm) wide, and 16.5″ (419.1 mm) deep. It is designed to support a 12″ (304.8 mm) wide Wyr-Grid® Pathway from the ceiling using a pair of 1/2″ (12 mm) threaded rod drops. The hardware for attaching the bracket to a threaded rod is sold separately. The electro zinc-plated bracket comes in standard packages of one.
Specifications
| Brand Name | Panduit | Sub Brand | Wyr-Grid® |
| Item Name | Bracket | Material | Steel |
| Type | Overhead, Trapeze | Dimensions | 16-1/2 in L x 2.22 in W x 2.41 in H |
| Color/Finish | Silver/Electro Zinc Plated | For Use With | 12 in Wyr-Grid Pathways |
| Includes | (1) Wry-Grid Cantilever Bracket, (1) Wry-Grid Bracket Clip, (1) 1/4-20 X 3/8 in Hex Head Cap Screw | Standards | RoHS Compliant |
| Application | Within Data Centers, Connected Buildings and Industrial Automation Application, FiberRunner Pathways | UPC | 07498361199 |
