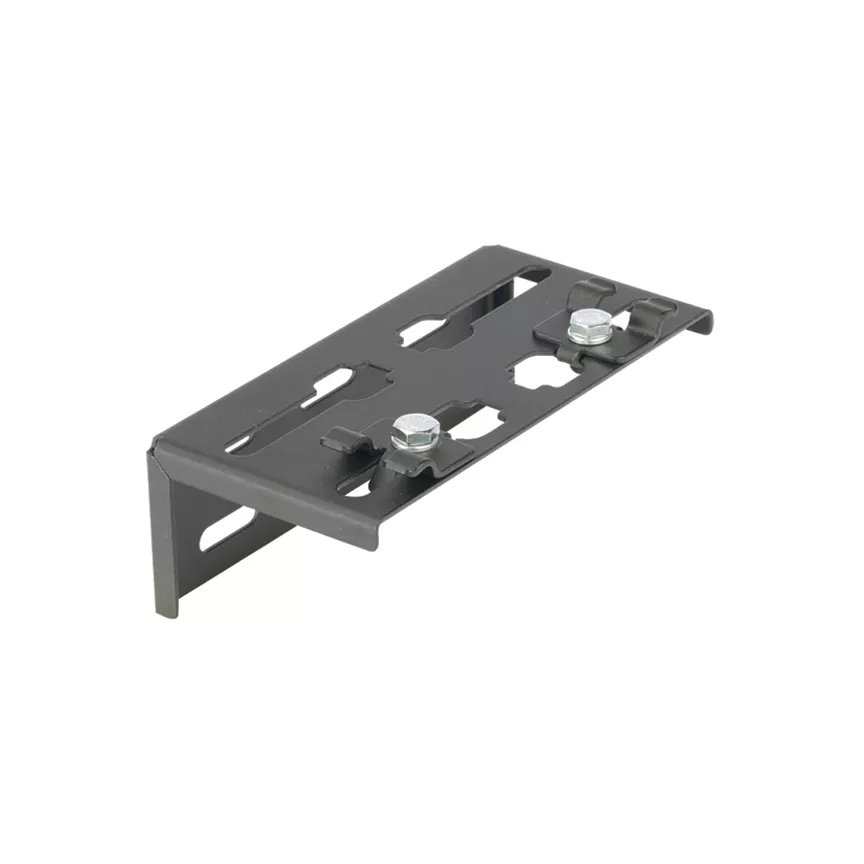

The black powder coated bracket is made of steel and is 2.44″ (61.98 mm) high, 6.05″ (153.67 mm), long, 3.12″ (79.25 mm) wide, and 6.05″ (153.67 mm) deep. It is used to support the end of the 8.0″ (203 mm) Wyr-Grid® Pathway against a vertical surface such as a wall. Mounting hardware for attaching the bracket to a wall is not included. The bracket comes in standard packages of one.
Specifications
| Brand Name | Panduit | Sub Brand | Wyr-Grid® |
| Item Name | Bracket | Mounting | Wall |
| Material | Steel | Type | Overhead |
| Dimensions | 6.05 in L x 3.12 in W x 2.44 in H | Color/Finish | Black/Powder Coated |
| For Use With | 8 in Wyr-Grid Pathways | Includes | (1) Wyr-Grid Wall Mount Bracket, (1) Wyr-Grid Quick Lock Clip, (1) 1/4-20 x 1/2 in Hex Head Cap Screw, (1) 1/4 Helical Spring Lockwasher |
| Standards | RoHS Compliant | Application | Within Data Centers, Connected Buildings and Industrial Automation Application, FiberRunner Pathways |
| UPC | 074983810895 |
