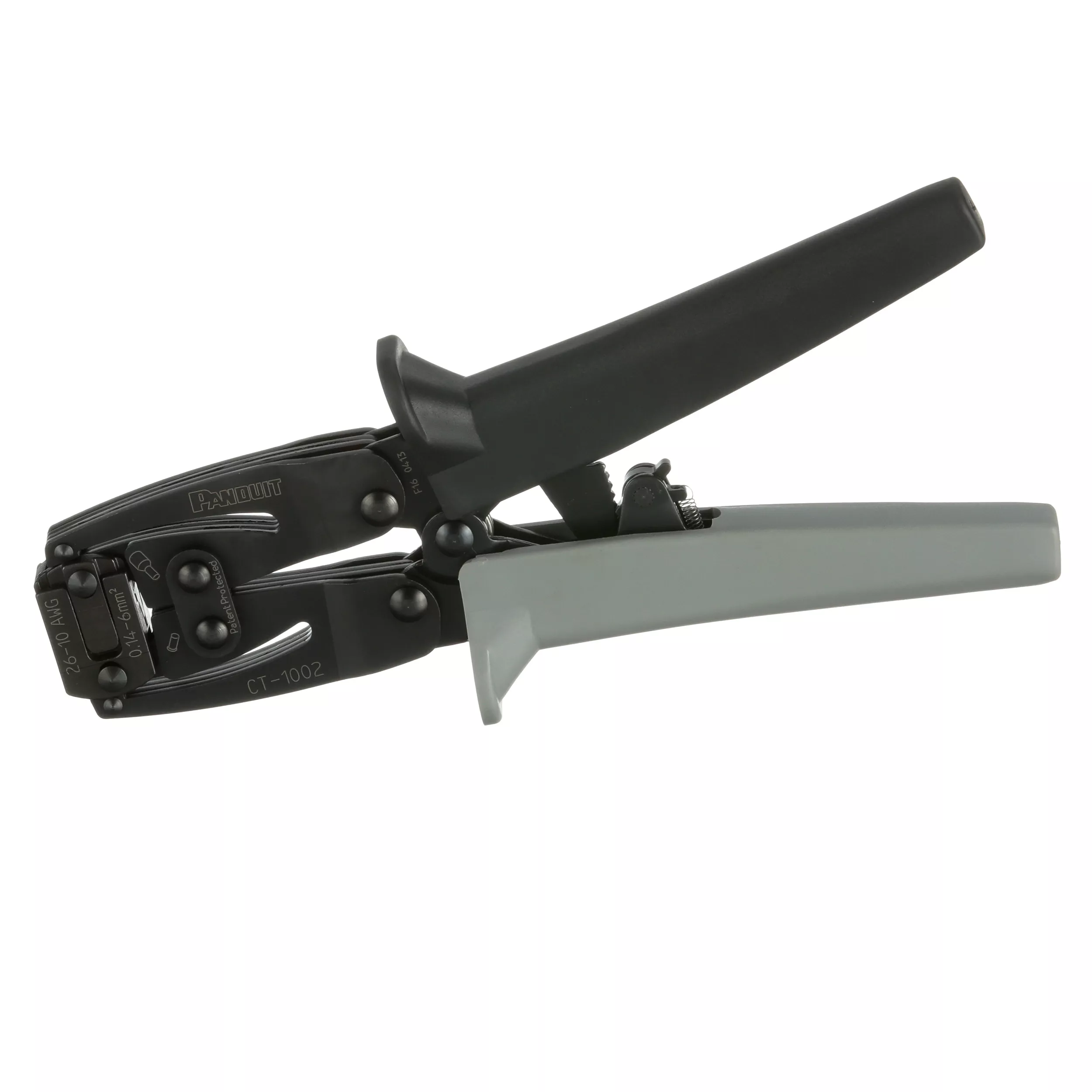

The controlled cycle crimp tool has a trapezoidal profile and is designed for strength and durability. It is intended for American Wire Gauge (AWG) 26 to 10 (0.14 to 6.0 mm²) insulated and non-insulated single wire ferrules and American Wire Gauge (AWG) 22 to 12 (0.50 to 4.0 mm²) insulated twin wire ferrules. The crimp tool is 8.27″ (210. 06 mm) long and 2.17″ (55.11 mm) wide with a closed handle. The crimp tool weighs 10.6 oz (300 g) and has an ergonomic design that assures operator comfort, safety, and performance.FEATURES AND BENEFITS:• Specifically designed for the installation of Pan-Term® Ferrules• Controlled cycle mechanism assures high quality, consistent terminations• Ergonomic tool design assures operator comfort, safety, and performance• Multi-position locator facilitates a high quality repeatable crimp
Specifications
| Brand Name | Panduit | Sub Brand | Contour Crimp™ |
| Item Name | Crimp Tool | Type | Controlled Cycle, Ferrule, Trapezoid |
| Overall Length | 8.27 in | Cutting Capacity | 0.14 – 6.0 mm² |
| Tool Material | Steel | Standards | Buy American Compliant |
| Application | For Pan-Term Ferrules | UPC | 074983764358 |
