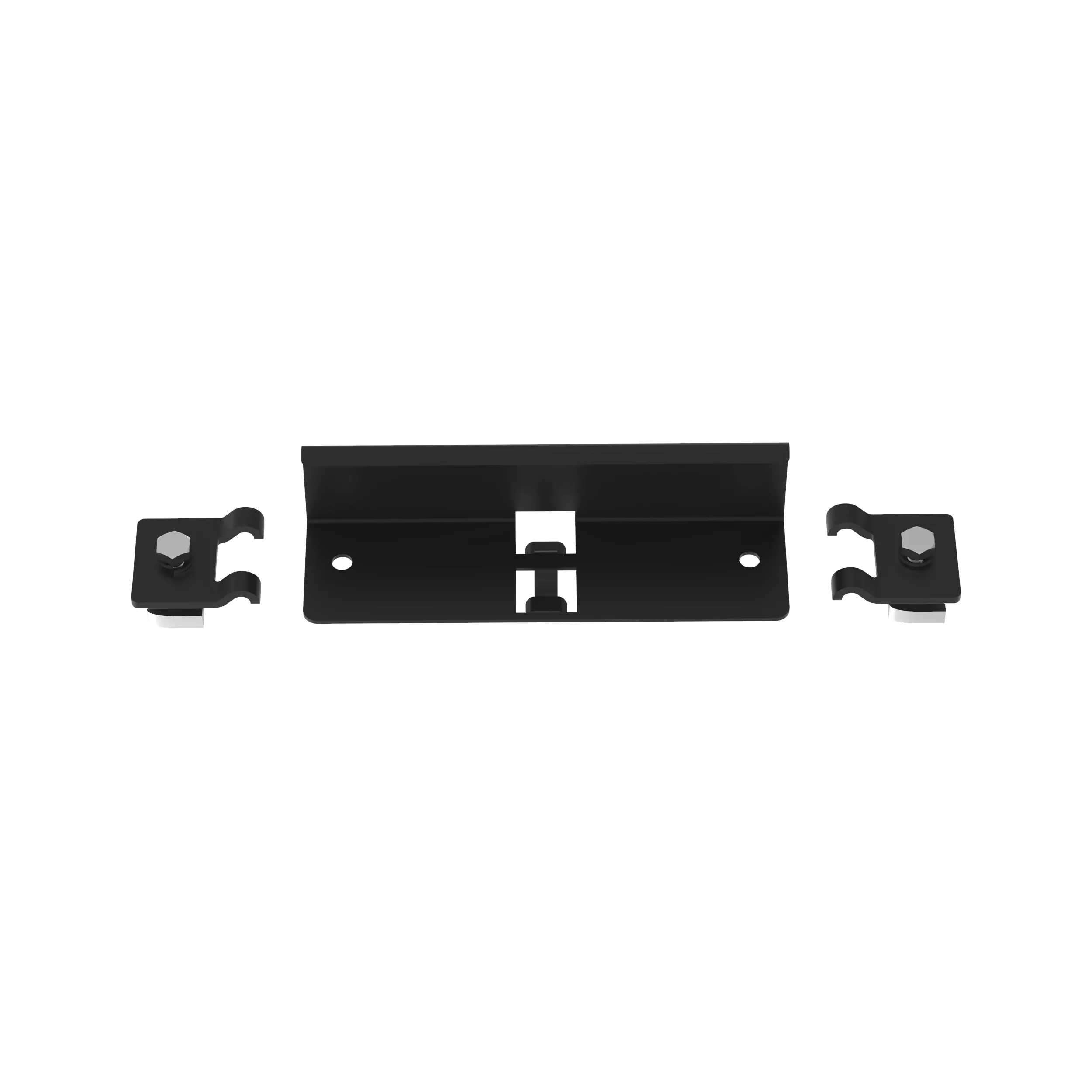

The black powder coated bracket strut mounting clip assembly in black is 2.27 (57.7 mm) high, 6.50 (165.1 mm) long, and 1.96 (49.8 mm) wide. It allows the Wyr-Grid Pathway to be attached directly to standard 1.63 (41.4) wide strut structures. The package contains a support member, two clips, and all hardware necessary for assembly.
Specifications
| Brand Name | Panduit | Sub Brand | Wyr-Grid® |
| Item Name | Strut Mounting Clip Assembly | Type | Rigid, One-Piece |
| Material | Steel | Color/Finish | Black/Powder Coated |
| Dimensions | 6-1/2 in L x 1.96 in W x 1.58 in H | Includes | (1) Strut Bracket, (2) Strut Clip, Each Strut Clip Consists of (1) Wyr-Grid Strut Clip (1) 1/4-20 x 7/8 in Hex Head Cap Screw, (1) 1/4 Helical Spring Lockwasher, (1) 1/4-20 Channel Nut |
| Standards | RoHS Compliant | Application | Within Data Centers, Connected Buildings and Industrial Automation Application, FiberRunner Pathways |
| UPC | 074983879854 |
