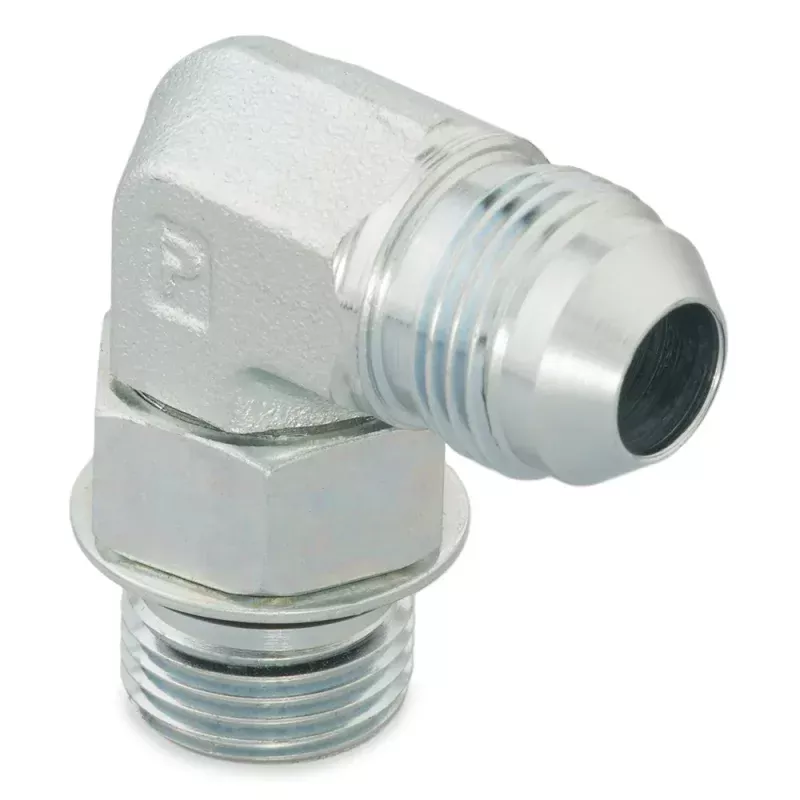

Parker Adapter Fitting Jic to SAE-ORB Elbow #8-5 C5OX-S

Original price was: $11.04.Current price is: $7.85.

Sale!
SKU: S97503403 Category:
Share

Technical Specifications

  • Connection Type:37 Flare, Tube to SAE-ORB
  • Specifications Met:SAE J514
  • Maximum Dynamic Pressure:6000 psi
  • Shape:90 Elbow
  • Connection 1 Size:Male 37 Flare
  • Connection 1 Tube Outside Diameter:1/2 inch, 12 mm
  • Connection 2 Size:Male SAE-ORB
  • Connection 2 Tube Outside Diameter:na
  • Connection 2 Thread Size:1/2-20 inch, na
  • Connection 3 Size:na
  • Connection 3 Tube Outside Diameter:na
  • Connection 3 Thread Size:na
  • Connection 4 Size:na
  • Connection 4 Tube Outside Diameter:na
  • O-Ring Material:90 Durometer Nitrile
  • Body Material:Steel

8-5 C5OX-S – Triple-Lok 37 Flare JIC Tube Fittings and Adapters | Parker NA
