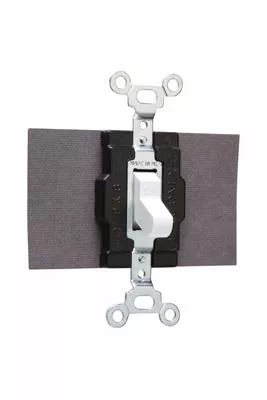

Double Pole, Double Throw Switch, 15 amps, 120/277 volts, White.FEATURES AND BENEFITS:•RoHS Compliant• Oversize silver alloy contacts for long life and better heat dissipation.• Side wired terminals accept 14 – 10 AWG copper or copper-clad conductors.• Fiber terminal insulation barriers standard.• Can be mounted in standard device boxes or in NEMA 1 sheet steel enclosures.• Bodies, covers, and toggles molded of durable nylon.• Single Pole-Double Throw and Double Pole-Double Throw.• Locking Switches supplied with one 1498-NT key.• Normally open.
Specifications
| Brand Name | Pass & Seymour | Sub Brand | Pass & Seymour |
| Item Name | Industrial Grade Toggle Switch | Type | Manual Control |
| Voltage Rating | 120 – 277 VAC | Amperage Rating | 15 A |
| Maximum Load Capacity | 2 W | Number of Poles | 2 |
| Contact Configuration | DPDT | Color | White |
| Grade | Industrial | Wiring Configuration | Side Wired |
| Material | Thermoplastic | Dimensions | 38.1 mm W x 37 mm D x 83.3 mm H |
| Mounting | Wall, Box | For Use With | Manual Controller |
| Standards | UL Listed, NEMA 1 Rated | Application | Commercial,Industrial |
| UPC | 785007122244 |
