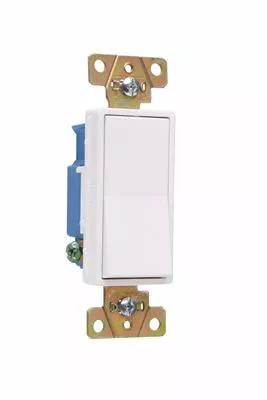

FEATURES AND BENEFITS: • Impact-resistant polycarb back body and frame. • Cushioned thermoplastic paddle assures smooth, quiet, long term operation. • Unique single rocking butterfly contact provides long term consistent performance with significantly fewer moving parts. • Internal screw-pressure-plate back and side wire capability for easy installation with 14 – 10 stranded or solid copper/copper clad wire. • Terminals made of high conductivity brass and serrated for maximum wire gripping. • Silver alloy contacts integrally formed to the butterfly actuator assures reliable performance. • Integral auto-ground clip for positive ground to metal boxes. • Tri-drive ground, terminal, and mounting screws. • All terminal screws backed out, ready-to-install.
Specifications
| Brand Name | Pass & Seymour | Sub Brand | Pass & Seymour |
| Item Name | Decorator Switch | Type | Decorator,Switch |
| Voltage Rating | 120 – 277 VAC | Amperage Rating | 15 A |
| Maximum Load Capacity | 1 W | Number of Poles | 1 |
| Action | Off | Actuator | Paddle, Rocker/Button |
| Load Type | CFL,Fluorescent,Halogen,Incandescent,LED,Universal,Xenon | Contact Rating | 120/277 VAC, 15 A |
| Terminal Connection | Screw, Grounded | Material | Thermoplastic |
| Color | White | Finish | Matte |
| Dimensions | 4-1/4 in | Mounting Type | Wall, Flush, Screw |
| Standards | UL 20 | Application | For Industrial Application |
| UPC | 785007539059 |
