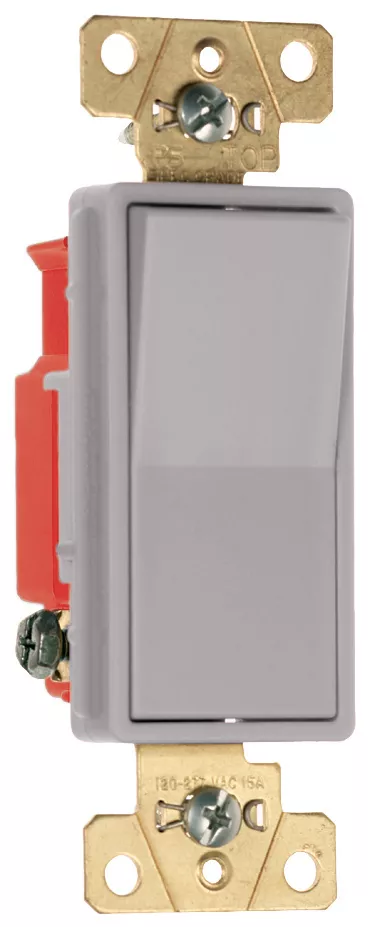

20Amp 347V 1-Pole Specification Grade Decorator Switch, GreyFEATURES AND BENEFITS: • Impact-resistant polycarb back body and frame. • Cushioned thermoplastic paddle assures smooth, quiet, long term operation. • Unique single rocking butterfly contact provides long term consistent performance with significantly fewer moving parts. • Internal screw-pressure-plate back and side wire capability for easy installation with 14 – 10 stranded or solid copper/copper clad wire. • Terminals made of high conductivity brass and serrated for maximum wire gripping. • Silver alloy contacts integrally formed to the butterfly actuator assures reliable performance. • Integral auto-ground clip for positive ground to metal boxes. • Tri-drive ground, terminal, and mounting screws. • All terminal screws backed out, ready-to-install.
Specifications
| Brand Name | Pass & Seymour | Sub Brand | Pass & Seymour |
| Item Name | Decorator Switch | Type | Switch |
| Grade | Residential/Commercial | Voltage Rating | 347 V |
| Amperage Rating | 20 A | Number of Poles | 1 |
| Action | SPDT | Actuator | Paddle |
| Contact Rating | 20 A | Contact Configuration | SPDT |
| Terminal Connection | Grounded | Color | Gray |
| Dimensions | 4.6 in x 2.5 in x 2.4 in | Mounting Type | Wall |
| Standards | UL 20 | Application | Residential/Commercial |
| UPC | 785007260076 |
