FEATURES AND BENEFITS: • Impact-resistant polycarb back body and frame. • Cushioned thermoplastic paddle assures smooth, quiet, long term operation. • Unique single rocking butterfly contact provides long term consistent performance with significantly fewer moving parts. • Internal screw-pressure-plate back and side wire capability for easy installation with 14 – 10 stranded or solid copper/copper clad wire. • Terminals made of high conductivity brass and serrated for maximum wire gripping. • Silver alloy contacts integrally formed to the butterfly actuator assures reliable performance. • Integral auto-ground clip for positive ground to metal boxes. • Tri-drive ground, terminal, and mounting screws. • All terminal screws backed out, ready-to-install.
Specifications
| Brand Name | Pass & Seymour | Sub Brand | Pass & Seymour |

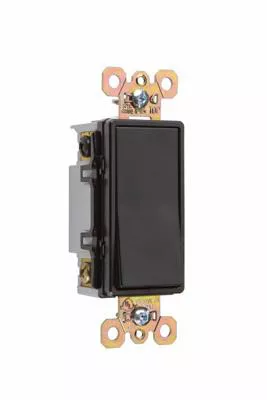

| Item Name | Decorator Switch | Type | Grounded |
| Grade | Industrial | Voltage Rating | 120 – 277 VAC |
| Amperage Rating | 20 A | Maximum Load Capacity | 2 W |
| Number of Poles | 2 | Actuator | Paddle, Rocker/Button |
| Load Type | CFL,Fluorescent,Halogen,Incandescent,LED,Universal,Xenon | Contact Rating | 20 A at 120/277 VAC |
| Terminal Connection | Screw | Material | Thermoplastic |
| Color | Black | Finish | Gloss |
| Dimensions | 4.25 in | Mounting Type | Wall, Flush, Screw |
| Standards | UL 20 | Application | Commercial,Industrial |
| UPC | 785007539417 |
