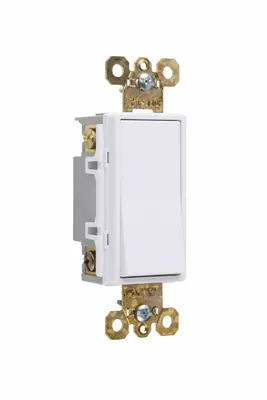

Four-way, Back and Side Wire, Canadian Decorator Switch, 20 amps, 347 volts, White.FEATURES AND BENEFITS:• Impact-resistant polycarb back body and frame.• Cushioned thermoplastic paddle assures smooth, quiet, long term operation.• Unique single rocking butterfly contact provides long term consistent performance with significantly fewer moving parts.• Internal screw-pressure-plate back and side wire capability for easy installation with 14 – 10 stranded or solid copper/copper clad wire.• Terminals made of high conductivity brass and serrated for maximum wire gripping.• Silver alloy contacts integrally formed to the butterfly actuator assures reliable performance.• Integral auto-ground clip for positive ground to metal boxes.• Tri-drive ground, terminal, and mounting screws.• All terminal screws backed out, ready-to-install.
Specifications
| Brand Name | Pass & Seymour | Sub Brand | Pass & Seymour |
| Item Name | Decorator Switch | Type | Halogen Free |
| Voltage Rating | 120 – 277 VAC | Amperage Rating | 20 A |
| Number of Poles | 2 | Power Rating | 4 W |
| Contact Rating | 20 A at 347 VAC | Actuator | Paddle |
| Mounting | Wall, Flush, Screw | Terminal Type | Screw, Grounded |
| Material | Plastic | Color | White |
| Finish | Gloss | Dimensions | 4-1/2 in |
| Standards | UL 20 Listed | Application | For Industrial Use |
| UPC | 785007260229 |
