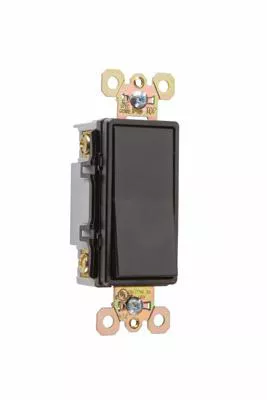

FEATURES AND BENEFITS: • Impact-resistant polycarb back body and frame. • Cushioned thermoplastic paddle assures smooth, quiet, long term operation. • Unique single rocking butterfly contact provides long term consistent performance with significantly fewer moving parts. • Internal screw-pressure-plate back and side wire capability for easy installation with 14 – 10 stranded or solid copper/copper clad wire. • Terminals made of high conductivity brass and serrated for maximum wire gripping. • Silver alloy contacts integrally formed to the butterfly actuator assures reliable performance. • Integral auto-ground clip for positive ground to metal boxes. • Tri-drive ground, terminal, and mounting screws. • All terminal screws backed out, ready-to-install.
Specifications
| Brand Name | Pass & Seymour | Sub Brand | Pass & Seymour |
| Item Name | Decorator Switch | Type | Specification Grade, 4-Way |
| Voltage Rating | 120 – 277 VAC | Amperage Rating | 20 A |
| Number of Poles | 2 | Power Rating | 4 W |
| Contact Rating | 20 A at 120/277 VAC | Actuator | Rocker |
| Mounting | Screw Mount | Connection | Back and Side Wired |
| Terminal Type | Screw | Material | Impact-Resistant Polycarbonate |
| Color | Black | Finish | Gloss |
| Standards | UL20 Listed, CSA C22.2 111 Certified, RoHS Compliant | Application | For Industrial Use |
| UPC | 785007539615 |
