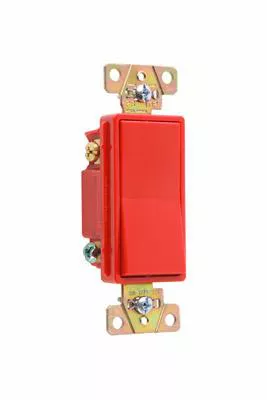

FEATURES AND BENEFITS: • Impact-resistant polycarb back body and frame. • Cushioned thermoplastic paddle assures smooth, quiet, long term operation. • Unique single rocking butterfly contact provides long term consistent performance with significantly fewer moving parts. • Internal screw-pressure-plate back and side wire capability for easy installation with 14 – 10 stranded or solid copper/copper clad wire. • Terminals made of high conductivity brass and serrated for maximum wire gripping. • Silver alloy contacts integrally formed to the butterfly actuator assures reliable performance. • Integral auto-ground clip for positive ground to metal boxes. • Tri-drive ground, terminal, and mounting screws. • All terminal screws backed out, ready-to-install.
Specifications
| Brand Name | Pass & Seymour | Sub Brand | Pass & Seymour |
| Item Name | Rocker Switch | Type | 4-Way, Decorator, Halogen-Free |
| Voltage Rating | 120 – 277 VAC | Amperage Rating | 20 A |
| Number of Poles | 3 | Action | TP 4way |
| Actuator | Paddle, Rocker/Button | Load Type | CFL,Fluorescent,Halogen,Incandescent,LED,Universal,Xenon |
| Contact Rating | 20 A | Material | Thermoplastic |
| Color | Red | Finish | Gloss |
| Dimensions | 4.6 x 2.5 x 2.4 in | Mounting Type | Wall Box |
| Standards | UL 20 Listed | Application | For Commercial, Residential Applications |
| UPC | 785007539646 |
