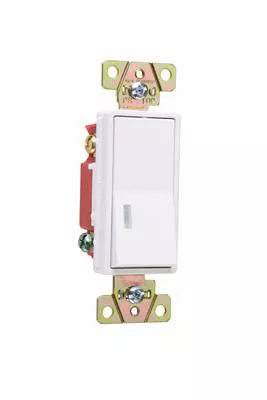

Three-way, Back and Side Wire, Illuminated Decorator Switch, 20 amps, 120 volts. FEATURES & BENEFITS:- Impact-resistant polycarb back body and frame.- Cushioned thermoplastic paddle assures smooth, quiet, long term operation.- Unique single rocking butterfly contact provides long term consistent performance with significantly fewer moving parts.- Internal screw-pressure-plate back and side wire capability for easy installation with 14 – 10 stranded or solid copper/copper clad wire.- Terminals made of high conductivity brass and serrated for maximum wire gripping.- Silver alloy contacts integrally formed to the butterfly actuator assures reliable performance.- Integral auto-ground clip for positive ground to metal boxes.- Tri-drive ground, terminal, and mounting screws.- All terminal screws backed out, ready-to-install.
Specifications
| Brand Name | Pass & Seymour | Sub Brand | Pass & Seymour |
| Item Name | Decorator Switch | Type | 3-Way |
| Voltage Rating | 120 V | Amperage Rating | 20 A |
| Number of Poles | 1 | Actuator | Paddle, Rocker/Button |
| Load Type | CFL,Fluorescent,Halogen,Incandescent,LED,Universal,Xenon | Contact Rating | 20 A, 120 VAC |
| Material | Thermoplastic | Color | White |
| Finish | Matte | Dimensions | 4.25 in |
| Mounting Type | Wall Box | Standards | UL 20 |
| Application | Industrial | UPC | 785007539851 |
