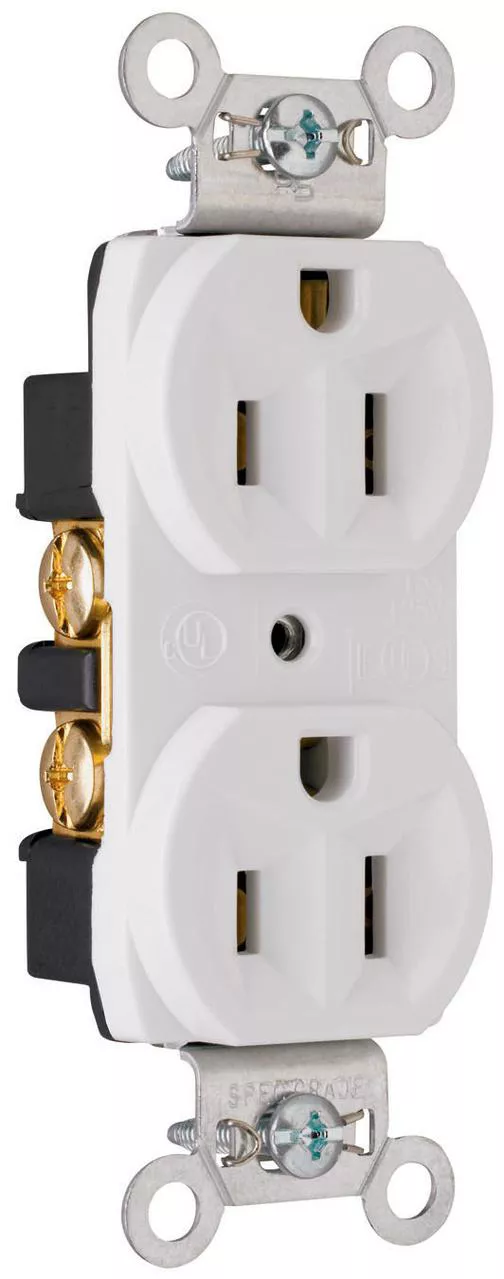

15Amp 125V Construction Specification Grade Duplex Receptacle – Back & Side Wire.FEATURES AND BENEFITS: • RoHS Compliant • Corrosion-resistant, plated steel strap locked in to face and back body to resist pulling away from face/body assembly. • .032 inch thick, brass, triple-wipe power contacts for lasting retention. • Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring. • Impact-resistant nylon face and thermoplastic back body. • 8 hole internal screw-pressure-plate back wire terminals accept 10 – 14 AWG solid or stranded copper or copper-clad conductors. • Terminal compartments isolated from each other for positive conductor containment. • Tri-drive terminal and mounting screws. • Auto-ground clip assures positive ground.
Specifications
| Brand Name | Pass & Seymour | Sub Brand | Pass & Seymour |
| Item Name | Straight Blade Duplex Receptacle | Type | Construction |
| Grade | Residential/Commercial | Size | 3.3 in |
| Voltage Rating | 125 V | Amperage Rating | 15 A |
| Number of Poles | 2 | Number of Wires | 3 |
| Connection Type | Wire Ground | NEMA Rating | 5-15R |
| Conductor Size | 4 AWG | Material | Thermoplastic |
| Color | White | Finish | Matte |
| Terminal Connection | Screw | Dimensions | 3.3 in |
| Mounting Type | Wall | Standards | UL 498 |
| Application | Commercial | UPC | 785007210163 |
