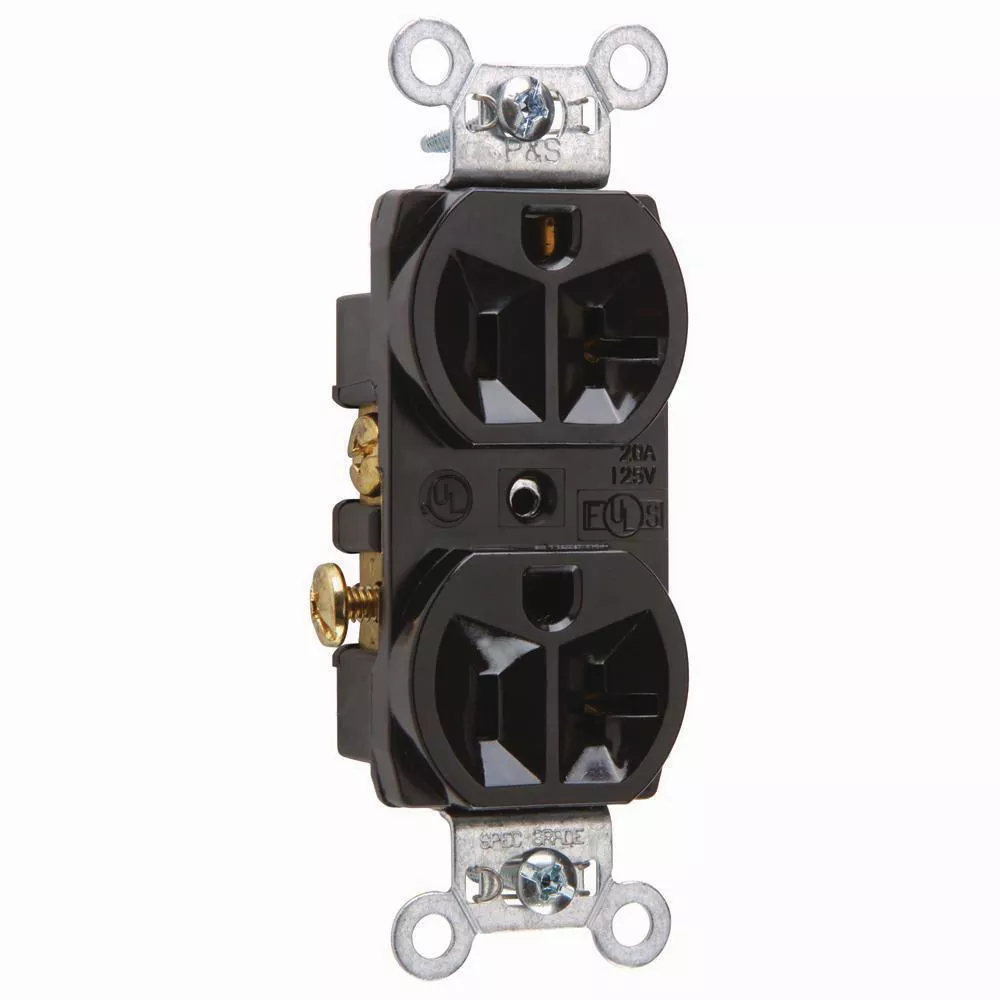

20Amp 125V Construction Spec Grade Duplex Receptacle, Back & Side Wire.FEATURES AND BENEFITS: • RoHS Compliant • Corrosion-resistant, plated steel strap locked in to face and back body to resist pulling away from face/body assembly. • .032 inch thick, brass, triple-wipe power contacts for lasting retention. • Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring. • Impact-resistant nylon face and thermoplastic back body. • 8 hole internal screw-pressure-plate back wire terminals accept 10 – 14 AWG solid or stranded copper or copper-clad conductors. • Terminal compartments isolated from each other for positive conductorcontainment. • Tri-drive terminal and mounting screws. • Auto-ground clip assures positive ground.
Specifications
| Brand Name | Pass & Seymour | Sub Brand | Pass & Seymour |
| Item Name | Receptacle | Type | Construction Spec-Grade Receptacle |
| Size | 1.322 in L x .78 in W x 3.281 in H | Voltage Rating | 125 V |
| Amperage Rating | 20 A | Number of Poles | 2 |
| Number of Wires | 3 | Connection Type | Back Wire,Side Wire |
| NEMA Rating | 5-20R | Material | Nylon |
| Color | Black | Finish | Matte |
| Dielectric Strength | 2000 V | Temperature Rating | -40 °C |
| Standards | UL 498, CSA C22.2 No. 42 | Application | Construction Applications |
| UPC | 785007210255 |
