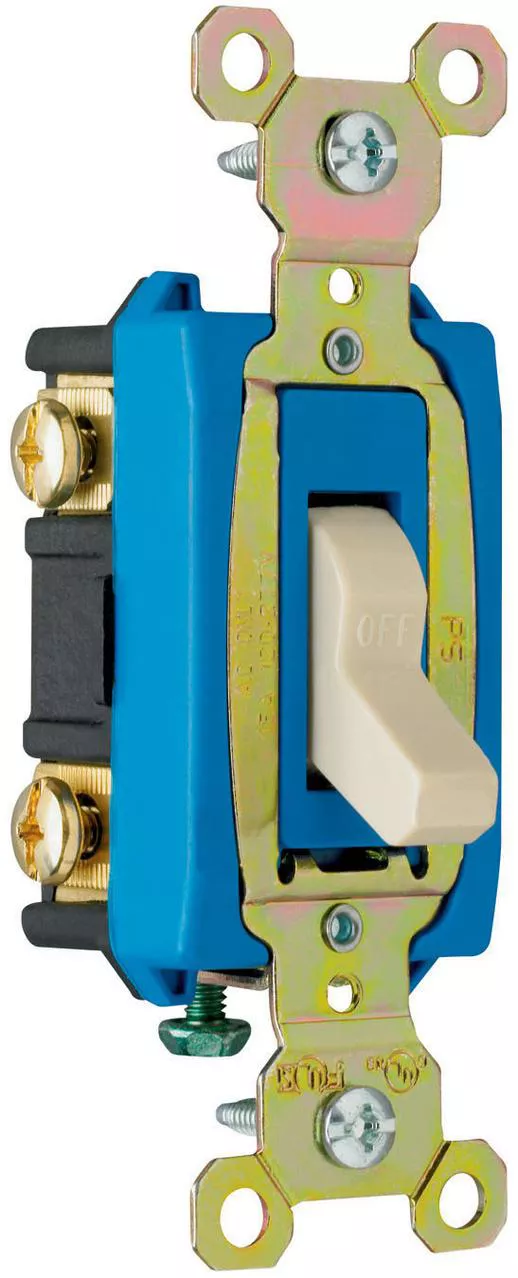

Construction 2-Pole Switch, Back & Side Wire, 15amp 120/277volt. FEATURES AND BENEFITS:• One-piece brass alloy contact arm for reliable electrical performance. • One-piece steel strap with integral ground is plated for corrosion resistance. • High strength thermoplastic polycarbonate toggle resists breaking and chipping under heavy abuse. • Heavy-duty toggle bumpers for smooth and quiet operation. • Back body made of glass-reinforced nylon. • Locking support provides resistance to face and back body separation. • Available with side wire or external screw-pressure-plate back and side wire models capable of accepting 14 – 10 AWG copper or copper-clad wire. • Cam designed for fast make with positive break action to minimize arcing and prolong switch life. • Oversized silver alloy contacts for longer dependable switch life. • Tri-drive terminal and mounting screws.
Specifications
| Brand Name | Pass & Seymour | Sub Brand | Pass & Seymour |
| Item Name | Toggle Switch | Type | Switch |
| Voltage Rating | 120/277 V | Amperage Rating | 15 A |
| Number of Poles | 2 | Actuator | Paddle |
| Color | Gray | Grade | Specification |
| Action | DPDT | Material | Thermoplastic |
| Mounting | Wall | Standards | UL 20 |
| Application | Commercial and Residential Applications | UPC | 785007126112 |
