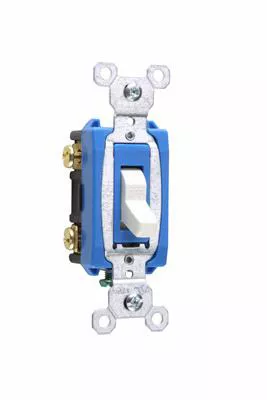

Construction 2-Pole Switch, Back & Side Wire, 15amp 120/277volt. FEATURES AND BENEFITS:• One-piece brass alloy contact arm for reliable electrical performance. • One-piece steel strap with integral ground is plated for corrosion resistance. • High strength thermoplastic polycarbonate toggle resists breaking and chipping under heavy abuse. • Heavy-duty toggle bumpers for smooth and quiet operation. • Back body made of glass-reinforced nylon. • Locking support provides resistance to face and back body separation. • Available with side wire or external screw-pressure-plate back and side wire models capable of accepting 14 – 10 AWG copper or copper-clad wire. • Cam designed for fast make with positive break action to minimize arcing and prolong switch life. • Oversized silver alloy contacts for longer dependable switch life. • Tri-drive terminal and mounting screws.
Specifications
| Brand Name | Pass & Seymour | Sub Brand | Pass & Seymour |
| Item Name | Commercial Grade Toggle Switch | Type | Switch |
| Voltage Rating | 120 – 277 VAC | Amperage Rating | 15 A |
| Number of Poles | 2 | Actuator | Toggle, Rocker/Button |
| Color | White | Grade | Commercial |
| Wiring Configuration | Back and Side Wire | Terminal Connection | Screw |
| Material | Thermoplastic | Dimensions | 3.3 in |
| Mounting | Wall, Flush, Screw | Standards | UL 20 |
| Application | Commercial,Industrial | UPC | 785007126143 |
