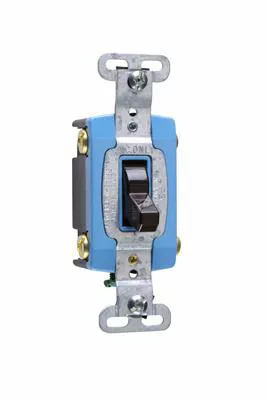

Construction 4-Way Switch, Back & Side Wire, 15amp 120/277 volt. FEATURES AND BENEFITS:• One-piece brass alloy contact arm for reliable electrical performance. • One-piece steel strap with integral ground is plated for corrosion resistance. • High strength thermoplastic polycarbonate toggle resists breaking and chipping under heavy abuse. • Heavy-duty toggle bumpers for smooth and quiet operation. • Back body made of glass-reinforced nylon. • Locking support provides resistance to face and back body separation. • Cam designed for fast make with positive break action to minimize arcing and prolong switch life. • Oversized silver alloy contacts for longer dependable switch life. • Tri-drive terminal and mounting screws.
Specifications
| Brand Name | Pass & Seymour | Sub Brand | Pass & Seymour |
| Item Name | Commercial Grade Toggle Switch | Type | 4-Way |
| Voltage Rating | 120 – 277 VAC | Amperage Rating | 15 A |
| Maximum Load Capacity | 4 W | Number of Poles | 2 |
| Actuator | Toggle | Color | Brown |
| Grade | Commercial | Wiring Configuration | Back and Side Wire |
| Material | Thermoplastic | Dimensions | 3.3 in |
| Mounting | Wall | Standards | UL 20 |
| Application | Commercial,Industrial | UPC | 785007126303 |
