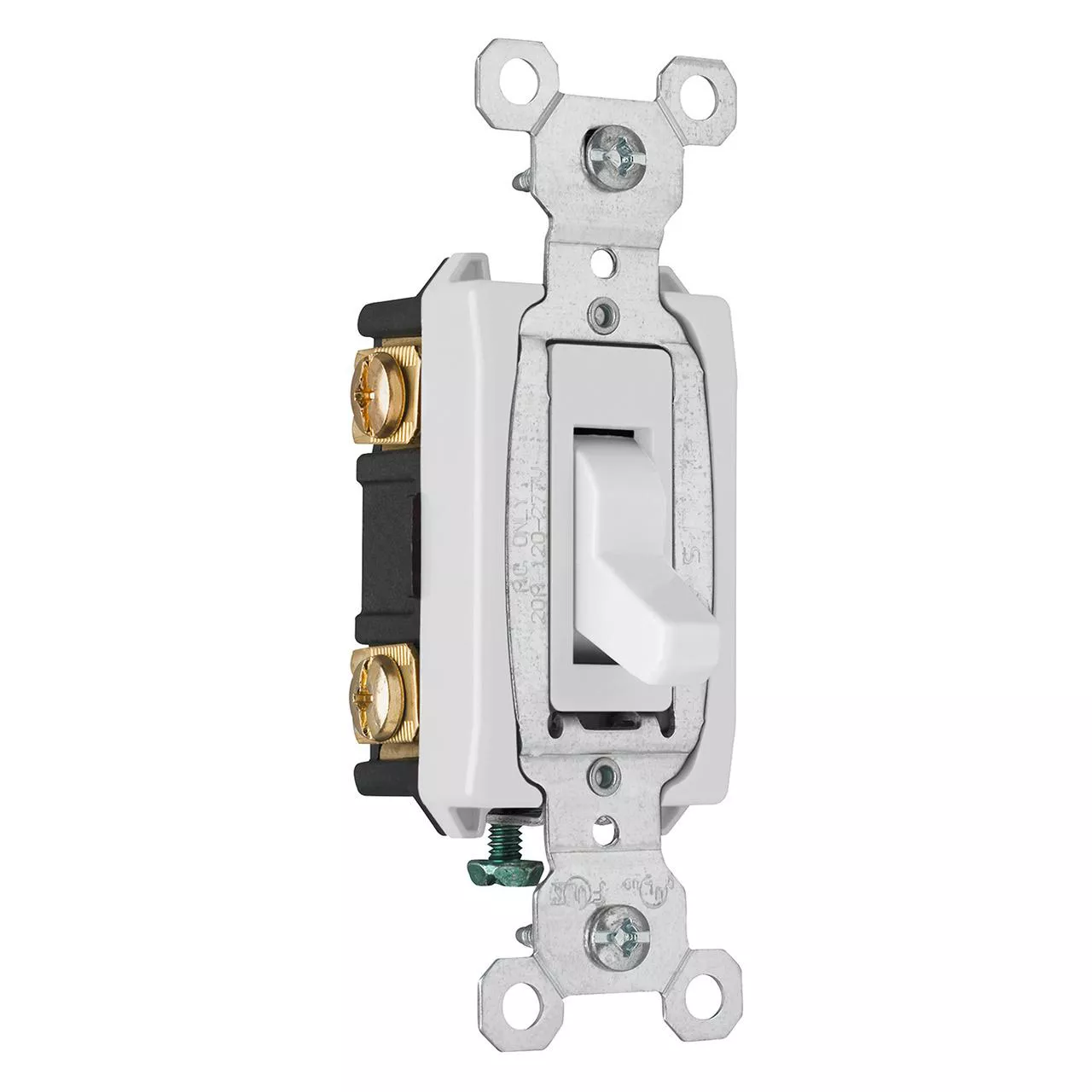

Construction 3-Way Switch, Back & Side Wire, 20amp 120/277volt, White. FEATURES AND BENEFITS:• One-piece brass alloy contact arm for reliable electrical performance. • One-piece steel strap with integral ground is plated for corrosion resistance. • High strength thermoplastic polycarbonate toggle resists breaking and chipping under heavy abuse. • Heavy-duty toggle bumpers for smooth and quiet operation. • Back body made of glass-reinforced nylon. • Locking support provides resistance to face and back body separation. • Available with side wire or external screw-pressure-plate back and side wire models capable of accepting 14 – 10 AWG copper or copper-clad wire. • Cam designed for fast make with positive break action to minimize arcing and prolong switch life. • Oversized silver alloy contacts for longer dependable switch life. • Tri-drive terminal and mounting screws.
Specifications
| Brand Name | Pass & Seymour | Sub Brand | Pass & Seymour |
| Item Name | Commercial Grade Toggle Switch | Type | 3-Way |
| Voltage Rating | 120 – 277 VAC | Amperage Rating | 20 A |
| Number of Poles | 2 | Actuator | Toggle |
| Color | White | Grade | Commercial/Residential |
| Action | 4P | Wiring Configuration | Back and Side Wire |
| Terminal Connection | Screw | Material | Thermoplastic |
| Dimensions | 3.3 in | Mounting | Wall, Flush, Screw |
| Standards | UL 20 | Application | Commercial,Industrial |
| UPC | 785007126297 |
