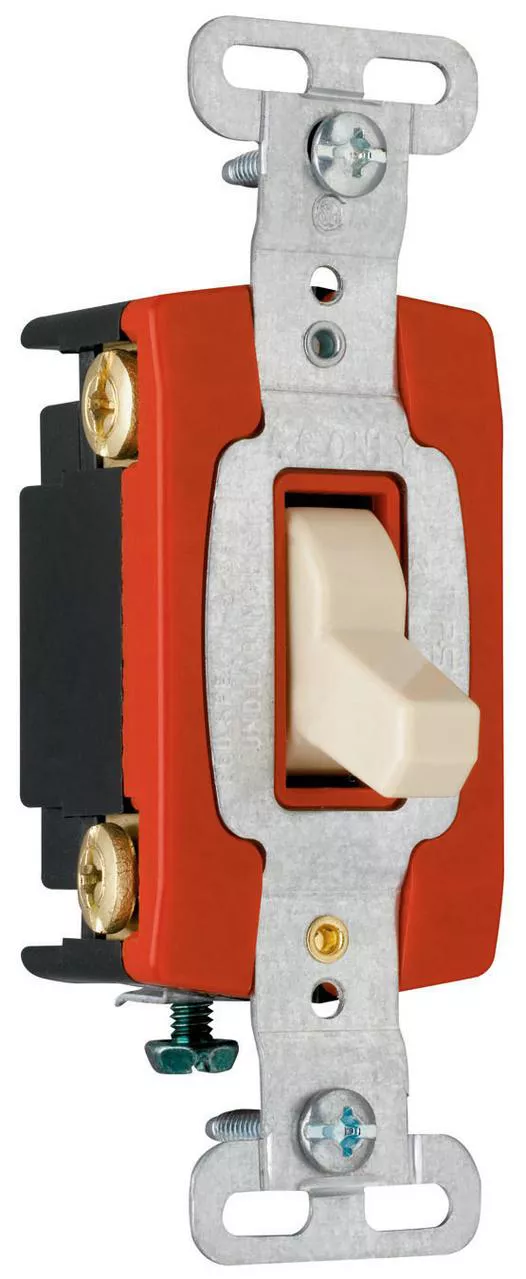

Construction 4way Switch, Back & Side Wire, 20amp 120/277volt.FEATURES AND BENEFITS:• One-piece brass alloy contact arm for reliable electrical performance.• One-piece steel strap with integral ground is plated for corrosion resistance.• High strength thermoplastic polycarbonate toggle resists breaking and chipping under heavy abuse.• Heavy-duty toggle bumpers for smooth and quiet operation.• Back body made of glass-reinforced nylon. Locking support provides resistance to face and back body separation.• Available with side wire or external screw-pressure-plate back and side wire models capable of accepting 14 – 10 AWG copper or copper-clad wire.• Cam designed for fast make with positive break action to minimize arcing and prolong switch life.• Oversized silver alloy contacts for longer dependable switch life.• Tri-drive terminal and mounting screws.
Specifications
| Brand Name | Pass & Seymour | Sub Brand | Pass & Seymour |
| Item Name | Toggle Switch | Type | 4-Way |
| Voltage Rating | 120 – 277 VAC | Amperage Rating | 20 A |
| Number of Poles | 3 | Actuator | Toggle |
| Color | Gray | Grade | Specification |
| Action | 4P | Material | Thermoplastic |
| Dimensions | 3.3 in | Mounting | Wall |
| Standards | CSA Certified, Federal Specification, UL 20 Listed | Application | For Commercial, Residential Applications |
| UPC | 785007126365 |
