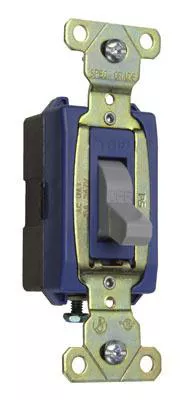

Canadian 1-Pole Switch, Back & Side Wire, 15amp 347volt.FEATURES AND BENEFITS:• External screw-pressure-plate back and side wired. Accepts 14 – 10 AWG copper or copper-clad conductors.• Heavy-gauge one-piece copper alloy contact arm virtually eliminates contact bounce.• Cam controls fast “make” and positive “break” to minimize arcing.• Heavy-duty bumper pads for quiet operation.• High strength thermoplastic polycarbonate toggle.• Back body made of glass-reinforced nylon.• Locking support provides resistance to face and back body separation.• Oversized silver alloy contacts for long life and better heat dissipation.• Grounding terminal is standard.• Shallow design for ease of installation.• Strap nickel-plated steel with integral ground.• Auto-ground clip assures positive ground.
Specifications
| Brand Name | Pass & Seymour | Sub Brand | Pass & Seymour |
| Item Name | Toggle Switch | Type | Switch |
| Voltage Rating | 347 VAC | Amperage Rating | 15 A |
| Number of Poles | 2 | Actuator | Toggle |
| Contact Configuration | DPDT | Color | Gray |
| Grade | Industrial | Action | DPDT |
| Wiring Configuration | Back and Side Wired | Material | Thermoplastic |
| Dimensions | 4.6 in x 2-1/2 in x 2.4 in | Mounting | Wall |
| Standards | UL 20 | Application | For Residential and Commercial Use |
| UPC | 785007196030 |
