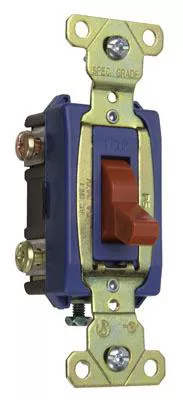

Canadian 3-Way Switch, Back & Side Wire, 15amp 347volt. FEATURES AND BENEFITS:• External screw-pressure-plate back and side wired. Accepts 14 – 10 AWG copper or copper-clad conductors. • Heavy-gauge one-piece copper alloy contact arm virtually eliminates contact bounce. • Cam controls fast “make” and positive “break” to minimize arcing. • Heavy-duty bumper pads for quiet operation. • High strength thermoplastic polycarbonate toggle. • Back body made of glass-reinforced nylon. • Locking support provides resistance to face and back body separation. • Oversized silver alloy contacts for long life and better heat dissipation. • Grounding terminal is standard. • Shallow design for ease of installation. • Strap nickel-plated steel with integral ground. • Auto-ground clip assures positive ground.
Specifications
| Brand Name | Pass & Seymour | Sub Brand | Pass & Seymour |
| Item Name | Industrial Grade Toggle Switch | Type | 3-Way |
| Voltage Rating | 347 VAC | Amperage Rating | 15 A |
| Number of Poles | 2 | Actuator | Toggle |
| Contact Configuration | DPDT | Color | Red |
| Grade | Industrial | Action | DPDT |
| Wiring Configuration | Back and Side Wire | Material | Thermoplastic |
| Dimensions | 2.5 in W x 2.4 in D x 4.6 in H | Mounting | Wall |
| Standards | UL 20 | Application | Residential/Commercial |
| UPC | 785007196115 |
