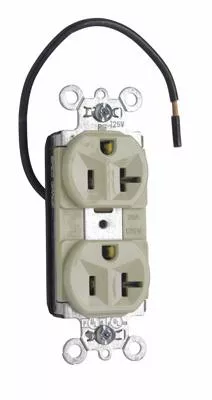

20Amp 125V PlugTail Split Circuit Spec Grade Duplex Receptacle.PRODUCT FEATURES:-RoHS Compliant -.036 inch thick, brass, triple-wipe power contacts for lasting retention. -Plated steel wrap strap design for maximum durability and corrosion resistance. -No exposed terminals create a finger safe application before, during, and after installation. -Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections. -Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL Listed, finger safe housing. -Crimped and welded contacts. -Large brass contacts snugly terminate on device blade terminals. -Pre-stripped connector leads fasten to conductors, easier than standard pigtails. -Pre-wired with one welded pre-stripped wire lead to facilitate switched receptacle circuit applications. -Auto-ground clip assures positive ground.
Specifications
| Brand Name | Pass & Seymour | Sub Brand | PlugTail® |
| Item Name | Straight Blade Duplex Receptacle | Type | Split Circuit |
| Grade | Federal Specification | Size | 1.5 L x .625 W x 3.281 H In |
| Voltage Rating | 125 V | Amperage Rating | 20 A |
| Number of Poles | 2 | Number of Wires | 3 |
| Wire Length | 6 in | NEMA Configuration | 5-20R |
| NEMA Rating | 5-20R | Conductor Size | 12 AWG |
| Material | Nylon | Color | Ivory |
| Dielectric Strength | 2000 V | Contact Material | Brass |
| Dimensions | 1.5 in L x 0.625 in W x 3.281 H in | Mounting Type | Wall |
| Temperature Rating | -40 °C | Standards | cULus Listed, UL 498 Listed, Federal Specification |
| Application | For Commercial Applications | UPC | 785007000177 |
