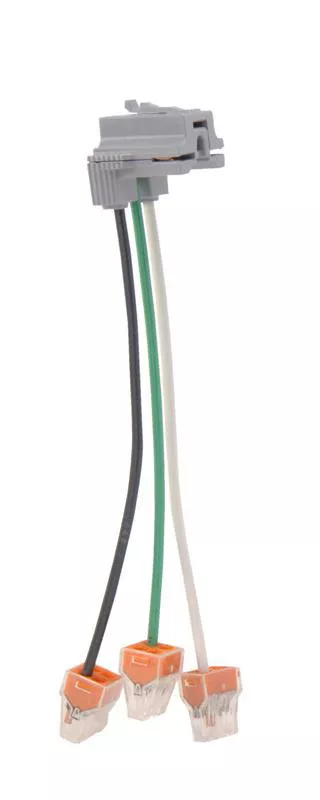

PRODUCT FEATURES:-RoHS Compliant -Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL Listed, finger safe housing. -Large brass contacts snugly terminate on device blade terminals. -Pre-stripped connector leads fasten to conductors, easier than standard pigtails.
Specifications
| Brand Name | Pass & Seymour | Sub Brand | PlugTail® |
| Item Name | WAGO Connector | Type | Right Angled |
| Size | 7.5 In | Number of Poles | 2 |
| Number of Wires | 3 | Wire Length | 6 in |
| Conductor Size | 12 AWG | Material | Polycarbonate |
| Color | Gray | Finish | Matte |
| Terminal Connection | Blade | Dielectric Strength | 2000 V |
| Contact Material | Brass | Dimensions | 7-1/2 in |
| Mounting Type | Device/Wall | Temperature Rating | -40 °C |
| Standards | cULus Listed, UL 498 Listed | Application | For Commercial Applications |
| UPC | 785007278248 |
