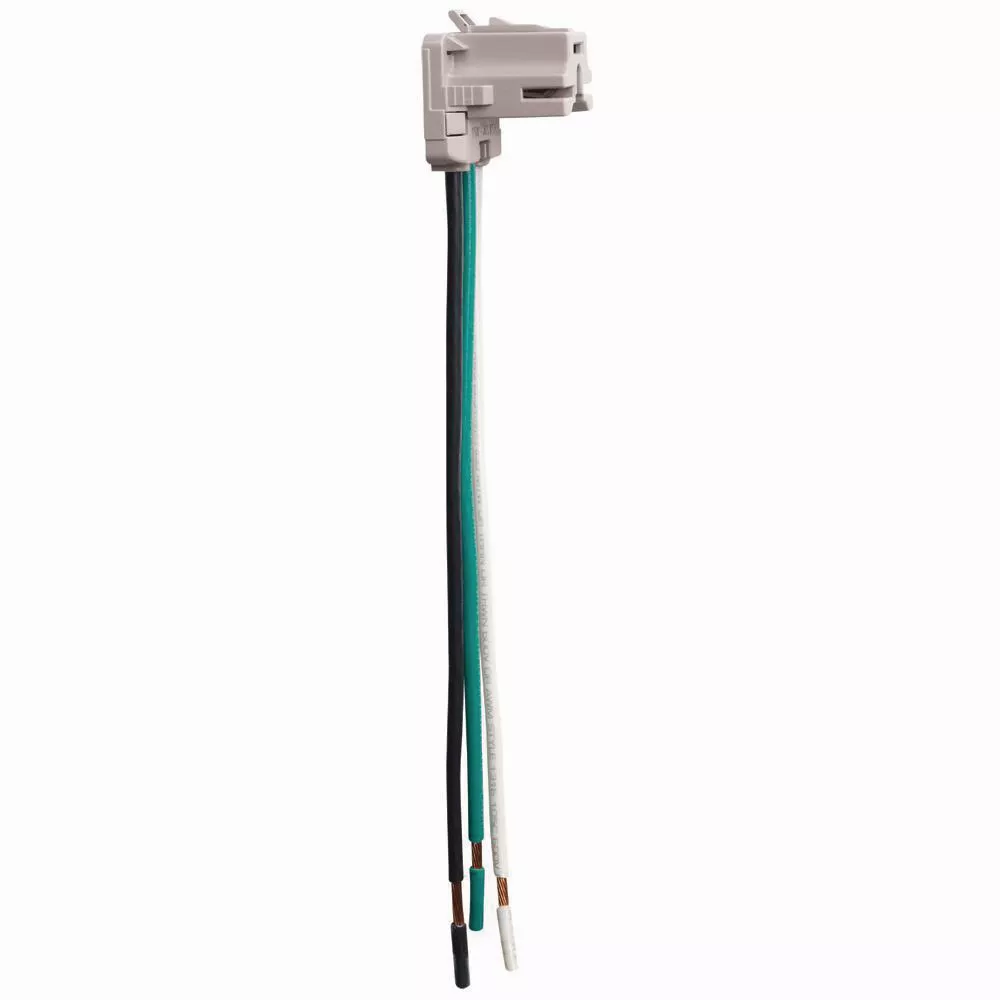

PlugTail® Connectors Right Angle Stranded 6″FEATURES AND BENEFITS:- Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL Listed, finger safe housing.- Large brass contacts snugly terminate on device blade terminals.- Pre-stripped connector leads fasten to conductors, easier than standard pigtails.
Specifications
| Brand Name | Pass & Seymour | Sub Brand | PlugTail® |
| Item Name | PlugTail Connector Receptacle | Type | Right Angled |
| Grade | Commercial | Size | 7.5 In |
| Number of Poles | 2 | Number of Wires | 3 |
| Wire Length | 6 in | Conductor Size | 12 AWG |
| Material | Polycarbonate | Color | Gray |
| Finish | Matte | Terminal Connection | Screw |
| Dielectric Strength | 2000 V | Dimensions | 7-1/2 in |
| Mounting Type | Device, Wall | Temperature Rating | -40 to 60 °C without Impact |
| Environmental Conditions | UL 94 Requirements, V2 Rated Flammability | Standards | UL 498, cULus Listed |
| Application | Commercial | UPC | 785007044546 |
