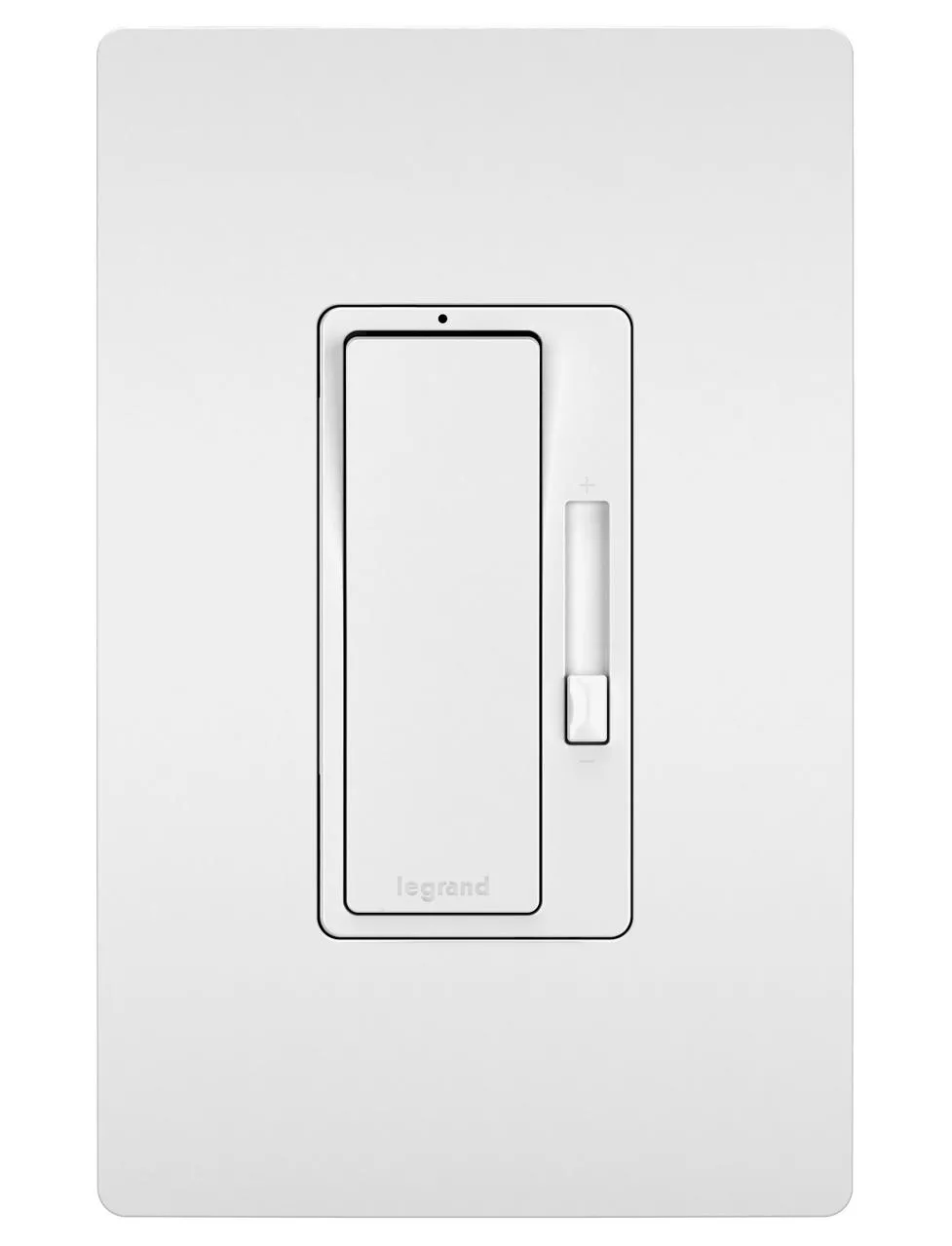

The radiant™ collection is a step up from the standard with simple, classic options in wiring devices, home automation controls and screwless wall plates that complement today’s homes. Designed to handle 0-10 volt dimming in fluorescent and LED fixtures. Features: – Part of the all-new radiant™ collection. – For use with 0-10V, 4 wire, 120V 10A/277V 5A fluorescent and LED dimming ballasts. – Convenient operation combines ON/OFF paddle switch with separate slider for dimming control. – Preset, single pole and 3-way operation. – White LED glows when dimmer is OFF for easy location in the dark. – Wider slide control for easier dimming operation. – Constant memory returns lights to previous level after a power failure. – No derating required for one- and two-gang applications.
Specifications
| Brand Name | Pass & Seymour | Sub Brand | The Radiant® |
| Item Name | Dimmer Switch | Type | 3 Way, Slide Handle, Paddle, Push Button, Multi-Location |
| Voltage Rating | 120 – 277 VAC | Frequency Rating | 60 Hz |
| Amperage Rating | 5 A | Number of Poles | 1 |
| Material | Thermoplastic | Color/Finish | White |
| Indicator Type | LED | Connection Type | Screw Terminal |
| Operating Temperature | 0 – 40 °C | Environmental Conditions | <95% RH Non-Condensing |
| Mounting | Box, Screw | Standards | cULus, UL Listed, CSA Certified |
| Application | For 0 – 10 V LED or Fluorescent Lighting Control, Residential Applications | UPC | 785007053326 |
