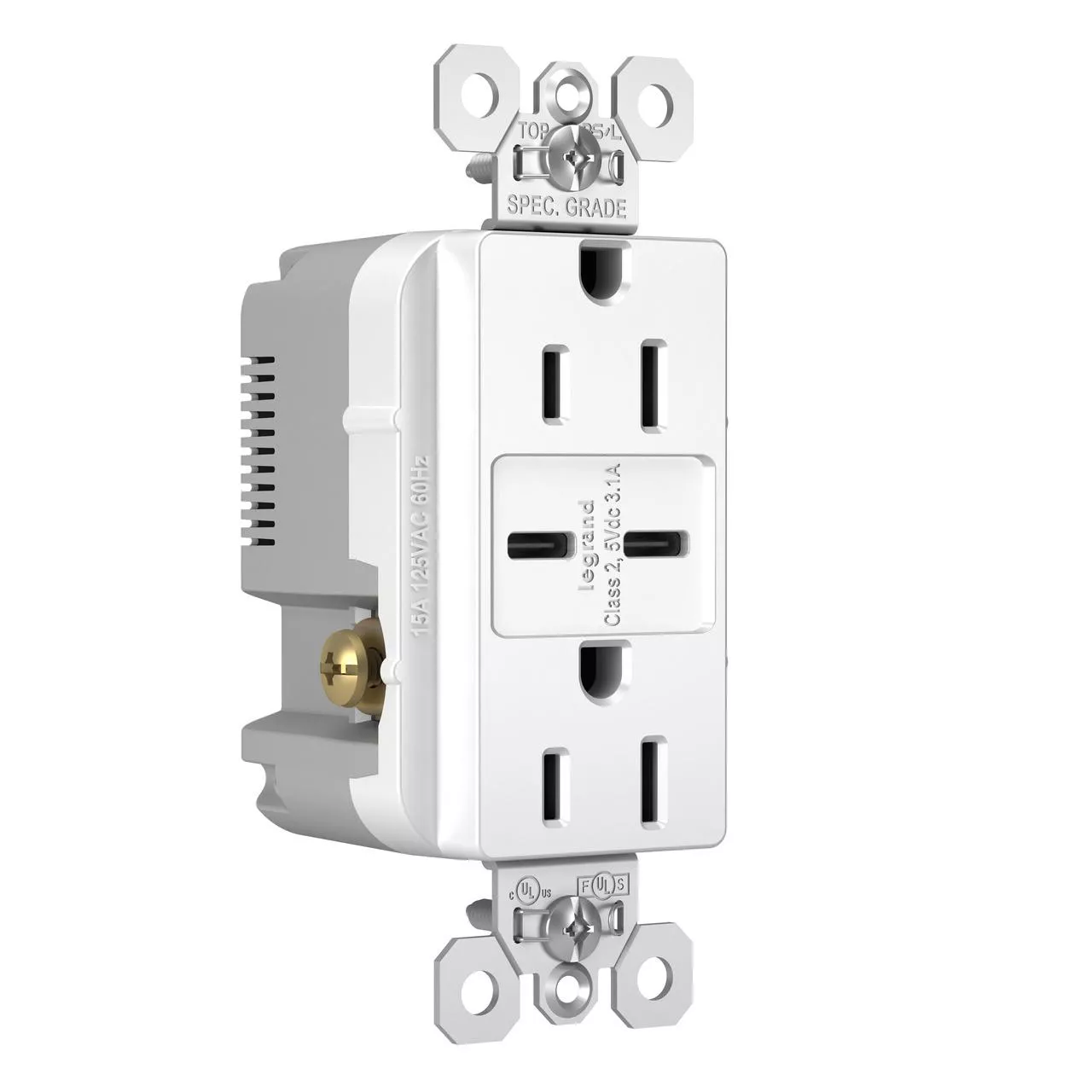

Pass & Seymour Commercial Specification and Hospital Grade USB Charging Receptacles are designed for the commercial market, and can withstand heavy use due to their UL Fed Spec certification. Features include an improved overall 3.1A USB charging output with current-sharing technology, USB Type-A and USB Type-C charging ports, auto-ground clips, and tamper-resistant receptacles. Posted terminal screws and external pressure plates allow for faster, easier, and more reliable back- and side-wire terminations.
Specifications
| Brand Name | Legrand | Item Name | Combination USB Charger with Duplex Receptacle |
| Type | Type C, Tamper-Resistant | Grade | Specification |
| Voltage Rating | 125 V | Amperage Rating | 3.1, 15 A |
| Wattage | 48.2 mW | NEMA Configuration | 5-15R |
| Conductor Size | 14-10 AWG | Material | Nylon Body, Polycarbonate Face |
| Color | White | Finish | Zinc Plated |
| Wiring Configuration | Back and Side Wired | Terminal Connection | Screw |
| Dielectric Strength | 1500 V | Dimensions | 1.693 in W x 1.425 in D x 3.28 in H |
| Temperature Rating | -40 °C to 60 °C | Standards | UL, cULus Listed, CSA Certified, RoHS Compliant |
| UPC | 785007181548 |
