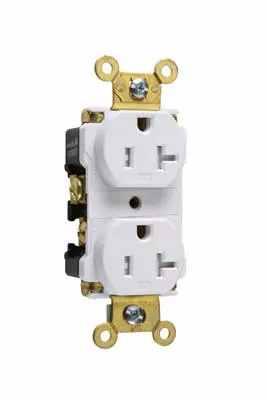

Tamper-Resistant Spec Grade Duplex Receptacle Back & Side Wire 20amp 125volt White. FEATURES AND BENEFITS: • Thermoplastic dual mechanism shutter system to help prevent insertion of foreign objects. • Exclusive patented feature, circuit label on face allows permanent circuit identification. • Extra heavy-duty brass, one-piece mounting strap with integral ground. • One-piece, brass, triple-wipe power contacts for lasting retention. • Strap tabs wrap around and lock down on face to prevent strap from separating from face and back body. • Impact-resistant nylon face and back body.• Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring. • Two drive screws anchor strap to back body and face. • Exclusive patented feature, external screw-pressure-plate back wire clamp on ground terminal for faster, easier installation. • External screw-pressure-plate back wire clamps with 10 brass terminal screws for visual assurance of a good connection. • Auto-ground clip assures positive ground.
Specifications
| Brand Name | Pass & Seymour | Sub Brand | Pass & Seymour |
| Item Name | Receptacle | Type | Non-Reversing |
| Grade | Specification | Size | 1.625 in L x 0.9 in W x 3.281 in H |
| Voltage Rating | 125 V | Amperage Rating | 20 A |
| Number of Poles | 2 | Number of Wires | 3 |
| Connection Type | Back Wire,Side Wire | NEMA Rating | 5-20R |
| Conductor Size | 10-14 AWG | Material | Nylon |
| Color | White | Finish | Matte |
| Dielectric Strength | 2000 V | Temperature Rating | -40 °C |
| Standards | UL 498, CSA C22.2 No. 42 | Application | Commercial Applications |
| UPC | 785007268027 |
