Product Description

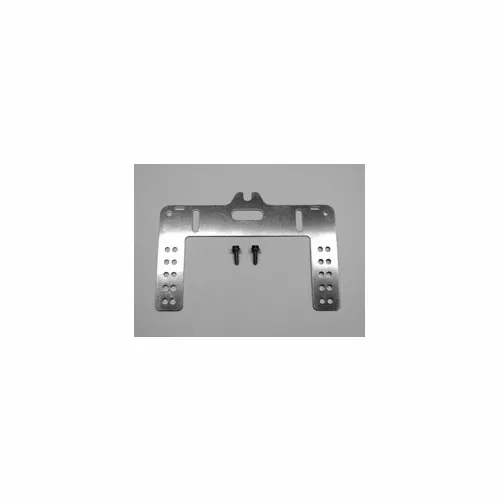

Preformed Line Products 8003749 ADSS MOUNTING KIT FOR INLINE NEWADSS COYOTE® IN-LINE Runt Brackets included with CLAS Storage Kit 710012375R1– (Cat. No. 8003749).The FIBERLIGN® Center-Lock Aerial Slack (CLAS) Storage System can be used to store ADSS cable up to 1″ (25mm) in diameter. The center-lock hinge allows the CLAS bracket to open and rest about the cable under tension thus eliminating the need for fasteners and labor normally associated with attaching conventional snow shoe designs. The CLAS bracket rests on the main cable (cable under tension) freeing up the installers hands for strapping the bracket to the cable.FIBERLIGN® CLAS Storage System is provided in kits for “Cable Storage Only” or kits for”Butt splice & cable storage”, the appropriate mounting brackets are included with the kits.An optional Low Profile Uni-Group Cable Guide (UCG) can be used to guide surplus cable past the pole within the same plane as the cable under tension: this can be beneficial in limited pole space areas where narrow vertical clearance exists.Fasteners are supplied for lagging to wood poles and joining the UCG halves for concrete/steel pole banded applications.*********NOTE: Banding material is not supplied: the UCG will accept up to3/4″ (19mm) wide band.
