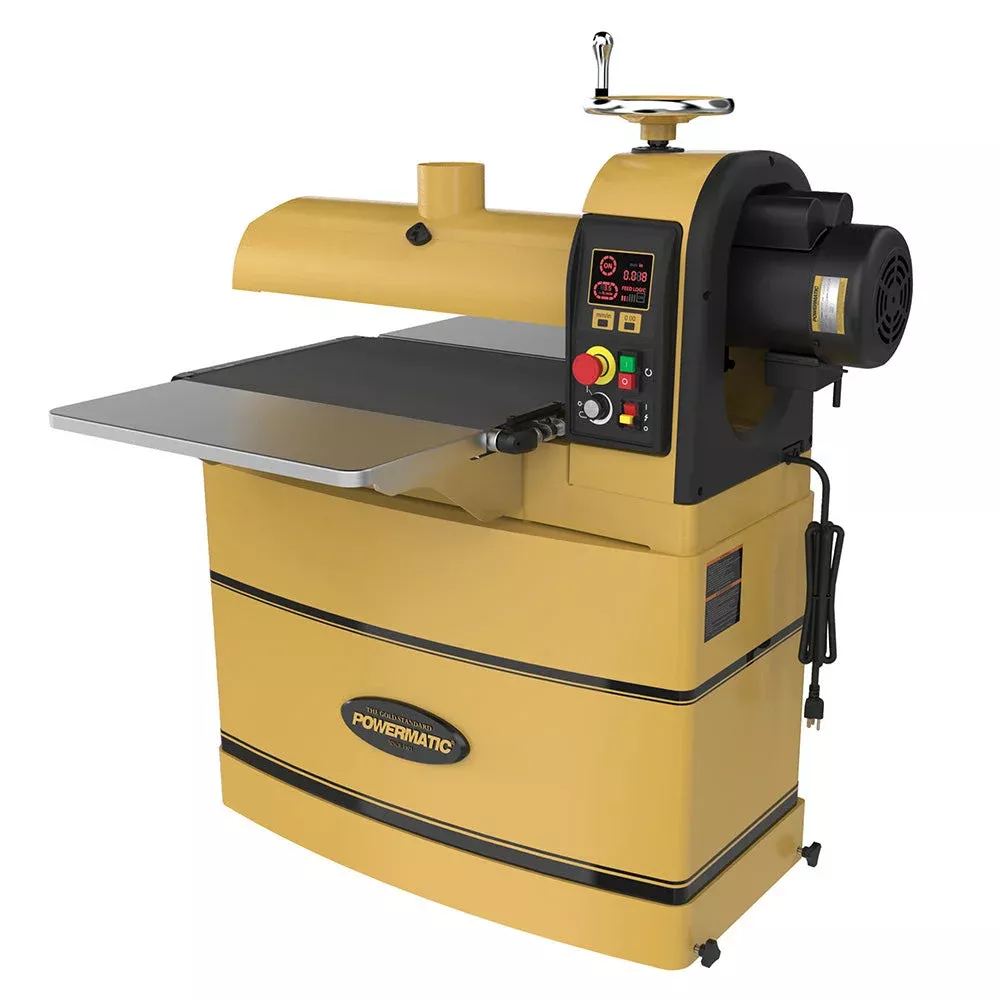

The PM2244 will exceed your expectations with its world-class design, usability and sophistication.
- Integrated LED Control Panel shows power, belt speed, and DRO
- Equipped with Feed Logic to produce exceptional finish while preventing machine overload
- Table parallelism is adjusted with a dial on the outside of the conveyor bed, eliminating adjustments to the entire drum carriage
- Secondary, absolute depth scale provides an additional height reading
- Drum carriage is designed to provide strength and consistent performance over time
- Steel hood with a 4″ dust port provide excellent dust collection
- Emergency stop for quick shutoff
- Large, chrome handwheel makes adjusting the drum height smooth and simple
- Belt tracking is designed to reduce the need for manual adjustment
- Integrated casters make it easy to move unit around the shop
- Included infeed/outfeed tables proved 37-1/2 inches of support for the workpiece
- Independent feed and drive motors provide exceptional sanding control
- Precision-machined cast iron conveyor bed and no-give power feed belt provide a flat sanding surface for better results
- Sealed and permanently lubricated drum ball bearings for longer life
- Closed stand with storage for keeping abrasives organized
- Drum is removable
Specifications:Style: Open StandDrum Length: 22″Drum Speed: 1,720 RPMDrum Diameter: 5″Conveyor Motor: 1/30 HPConveyor Speed: 0 – 10 FPMMaximum Board Thickness: 4″Maximum Board Width: 44″ (two passes)Minimum Board Length: 2-3/8″Minimum Board Thickness: 1/32″Dust Port Outside Diameter: 4″Dust Collection Minimum CFM: 800Motor Power: 1-3/4 HPMotor Voltage: 115Motor Amps: 14
Powermatic stock number 1792244
