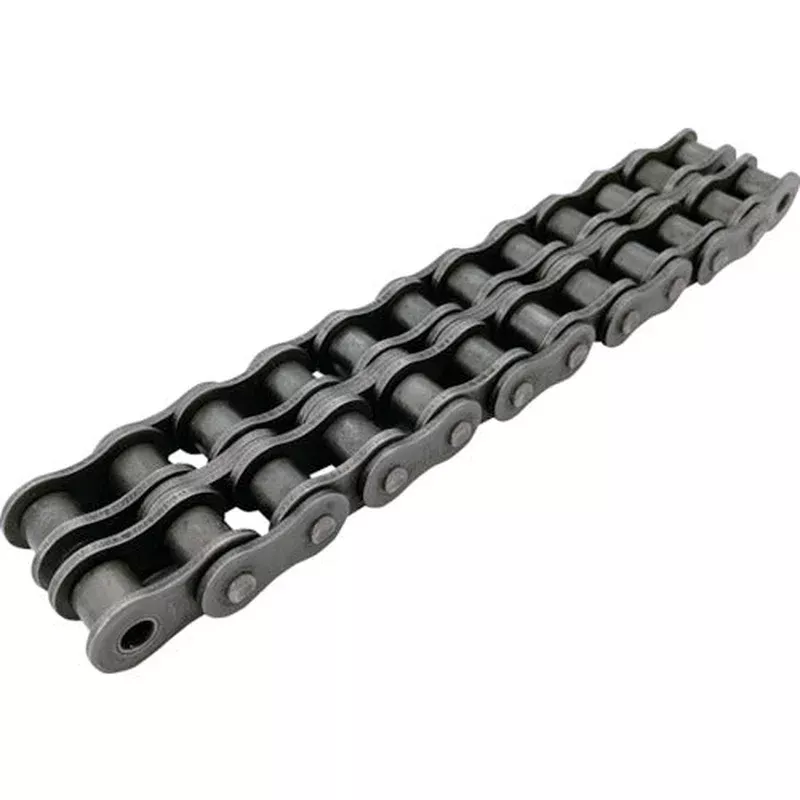

Features This chain is based on the Japanese Industrial Standard JIS.
Use For power transmission/drive
Specification Chain No.: 60Number of unit links: 160Pitch (mm): 19.05Roller outer diameter (mm): 11.91Inner link inner width (mm): 12.57Tensile strength (kN): 88.3Maximum allowable load (kN): 15.0 Maximum allowable tension (kN): 15.0 Average tensile strength (kN): 88.3 Length (m): 3 Type: Clip Number of rows: 2 rows
Specification2 Rivet type
Material/Finish Steel
Set contents/accessories
caution
