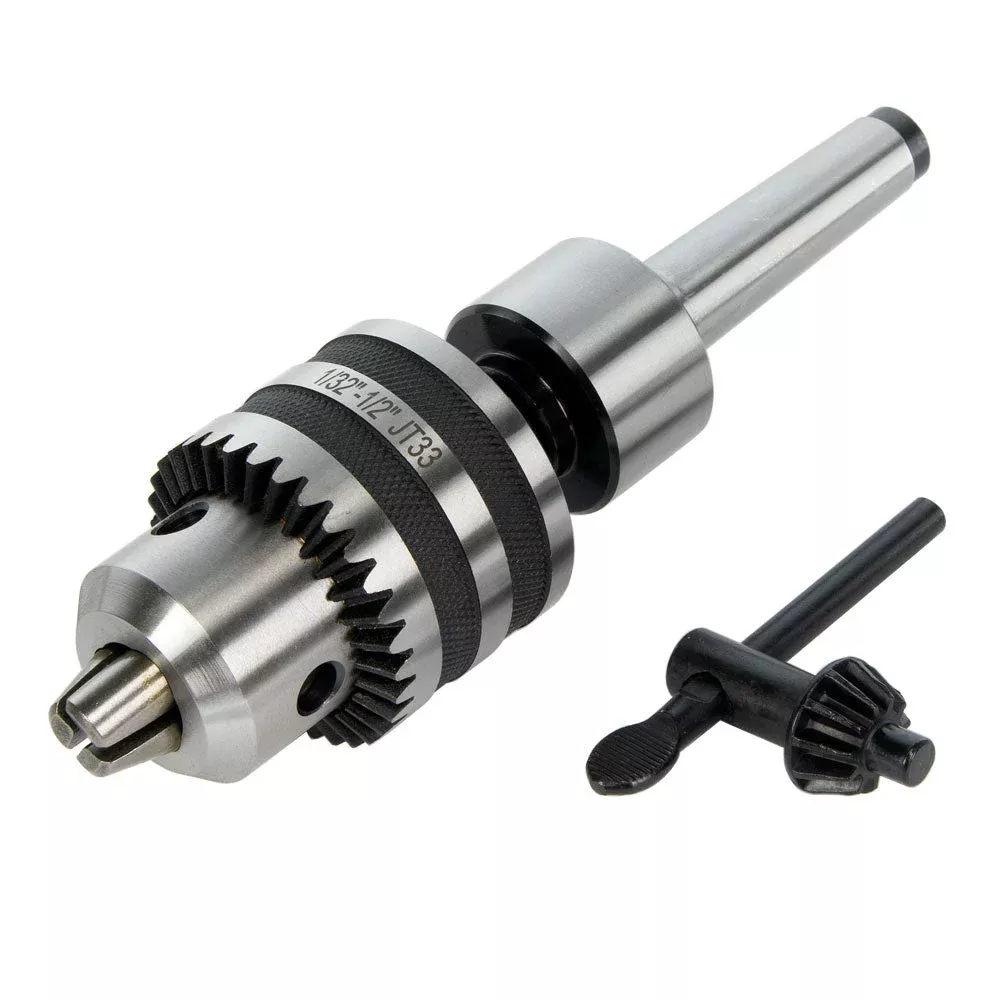

This is a “live” drill chuck for the tailstock. A rotating tailstock chuck (also called a revolving tailstock chuck) is an attachment for a lathe’s tailstock that allows the workpiece held in the tailstock center to be rotated precisely during machining. This is different from a fixed tailstock center, which only provides axial support. Use it to support small diameter work where a live center or a follower rest is not practical.
When It’s Useful:
- Turning long, slender, or heavy shafts where a fixed center can’t provide enough support or alignment.
- Facing or cleaning the OD of long or irregularly shaped parts.
- Working with pipe or odd-shaped parts that don’t accept a standard live/dead center.
- Precision detailing on the end of a workpiece when you need controlled rotation for concentricity.
The shank is 2 Morse taper. The drill chuck has a 1/32″ – 1/2″ capacity.
Chuck rotates smoothly on a sealed bearing. Chuck key is included.
