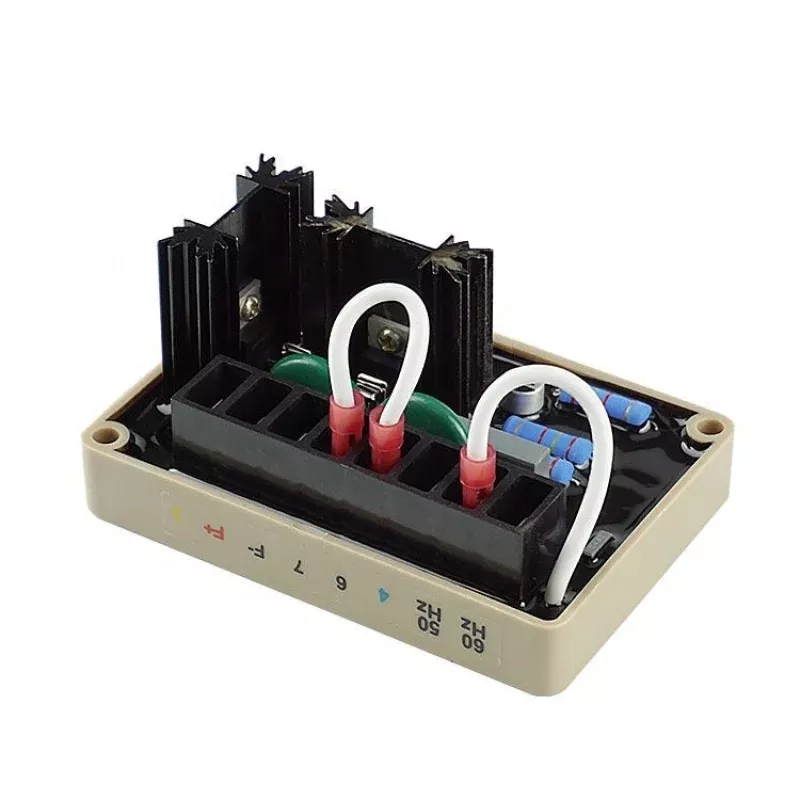

AVR SE350
– AVR SE350 regulator is a compatible replacement forSE350.
– The SE350 voltage regulator is an eneapsulated electronic voltage regulator that controls the output of a brushless AC generator by regulating the current into the exciter field.
Features
-Soft start voltage ramping.
-Sensing voltage loss protection.
-120 or 240 Vac sensing,jumper selectable.
-Under frequency roll off protection.
-With under frequency LED indicator.
| Product Name | SE350 Automatic Voltage Regulator AVR For Generator |
| Sensing/Power input | Voltage 190-240Vac |
| Frequency | 50/60 Hz jumper selectable |
| Output?Voltage | 73Vdc |
| Current?Output | Continuous 3.5A |
| Power Dissipation | 8 watts maximum |
