Product Description

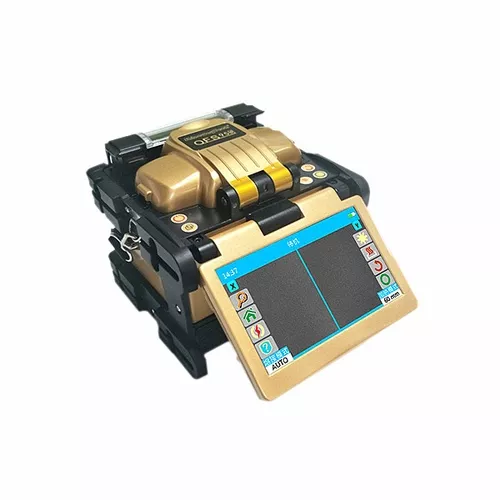

ShinewayTech® OFS-95EA optical fiber fusion splicer is designed with high-speed image processing technology and special precision-positioning technology. It will automatically finish the whole fiber fusion process in 9 seconds by fast mode, and splice loss is lower than 0.02dB for single mode fiber. 3.5-inch LCD, dual CMOS monitors, X and Y axis separately display or simultaneously display, thus different fusion stages can be showed clearly. It is compatible with ITU-T SM/MM/DS/NZDS/ED fiber, and is equipped with 4-in-1 holders and SOC adapter.OFS-95EA has small volume, light weight, AC/DC power supply and200+ splicing and heating cycles, so it is particularly suited to telecommunications, radio and television, railway, electric power, military, research institutes for optical fiber communication construction and maintenance. OFS-95EAis ideal for FTTH installation and maintenance.Hardware Structure Design FeatureCompact and convenient:1.5kg with batteryFour motors, special precision-positioning technologySplice Loss: SMF/BIF: =0.02dB(typ.); MMF: =0.01dB(typ.); DSF/NZDSF/EDF: =0.04dB(typ.)High precision 4-in-1 holder (250µm/900µm/patchcord/FTTx indoor fiber etc),SOC holderBattery and the host separation design, convenient maintenance and replacement of the batteryDouble V-groove designHigh strength portable straps design is convenient for hanging and operatingInner light make the operation environment in the darkWind, sand and dust prevention, waterproof, aseismatic design adapt to the outdoor environmentScreen flip-over feature76cm drop proof / ISTA certificateOptional GPS functionSoftware Design FeatureAuto checks fiber end-face, calibrate position of splicing, calculate splicing loss and temperature and pressure compensation and so onBetween X/Y single screen and X&Y easily switchAuto splice, auto arc optimization, auto heating=9s splicing time, =36s heating time (adjustable)3 hours fast battery rechargeReady-package battery with electric quantityindicator, convenient carrying and changeBuilt-in counter to warn replace electrode
