The SCBH3X15.37W-KT from Simpson Strong-Tie is a concealed beam hanger kit designed for structural applications that demand clean aesthetics and uncompromising strength. Perfect for engineered wood construction, this hanger delivers a hidden, high-capacity connection that enhances both performance and visual appeal in exposed timber designs.

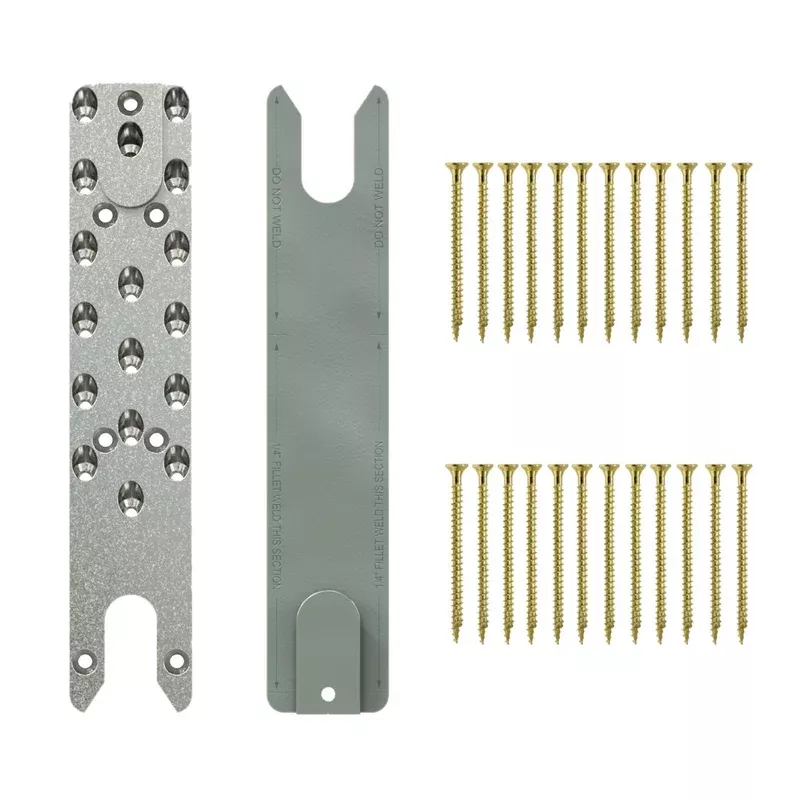

Kit Includes:
-
(1) SCBH 3×15.37 Concealed Beam Hanger Backplate
-
(1) SCBH 3×15.37W Concealed Beam Hanger Backplate
-
(24) SDCF22614 0.315″ x 6-1/4″ Strong-Drive SDCF Timber-CF Screw
Key Features:
- Concealed Connection: Keeps structural hardware hidden for a sleek, architectural finish
- High Load Capacity: Built for demanding engineered wood applications
- Durable Build: Crafted from high-quality materials for long-term performance
Applications:
- Engineered wood beam-to-column connections
- Architectural framing where hidden hardware is preferred
- Residential, commercial, or timber frame structures with exposed beams
Installation Overview:
- Preparation: Ensure beam and support surfaces are clean, aligned, and defect-free.
- Positioning: Align the SCBH hanger per design specs at the designated connection point.
- Fastening: Install the provided Strong-Drive
SDCF Timber-CF Screws
at specified angles and depths.
- Beam Seating: Carefully place the beam into the hanger pocket for full seating and alignment.
- Final Check: Verify all fasteners are tight and the connection meets structural requirements.
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
