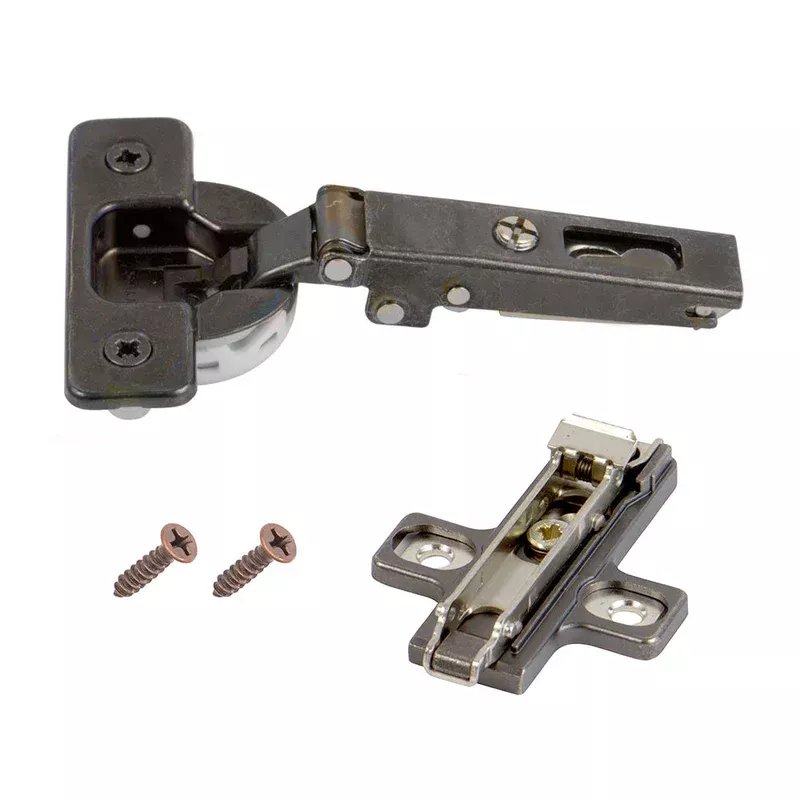

- Titanium finish European style hinge bundle.
- Straight arm model for frameless overlay doors.
- Features Silentia soft-close to close doors softly and quietly.
- Titanium plating over steel base material. This plating provides a nice aesthetic while offering superior corrosion resistance.
- Please note that these hinges do have some nickel parts that are visible. For example, the adjustment screw, rivet ends and some visible internal parts are nickel finish.
Installation
- Hinge cup installs in a 35mm (1-3/8″) diameter cup drilled in the back of the door
- Cup depth needs to be a minimum of 11 mm deep (7/16″).
- This hinge and the proper mounting plate will accommodate any overlay from 1/8″ to just under 13/16.
- European hinges are a two part hinge, made up of the hinge and a mounting plate. Use the document found under Downloads for information on how to choose the correct mounting plate.
- Each hinge comes with two plastic dowels and two dowel screws.
- Dowels and dowel screws are recommended for doors that are made from pressed or manufactured wood
- Dowel screws are regular wood screws that are a slightly shortened and blunt version of a wood screw.
- For solid wood doors, wood screws (no dowels) are recommended.
- For solid wood doors, discard the plastic dowels and either use the dowel screws or purchase regular bronze 6 flat head wood screws (2 each per hinge, our SKU 286255)
What’s Included
- 1 x Titanium Finish Soft-Close Straight Arm European Hinge
- 1 x Frameless Mounting Plate (two options available).
- 2 x Plastic Dowels and Dowel Screws (preattached to hinge)
- 2 x 6 Screws for Mounting Plate
