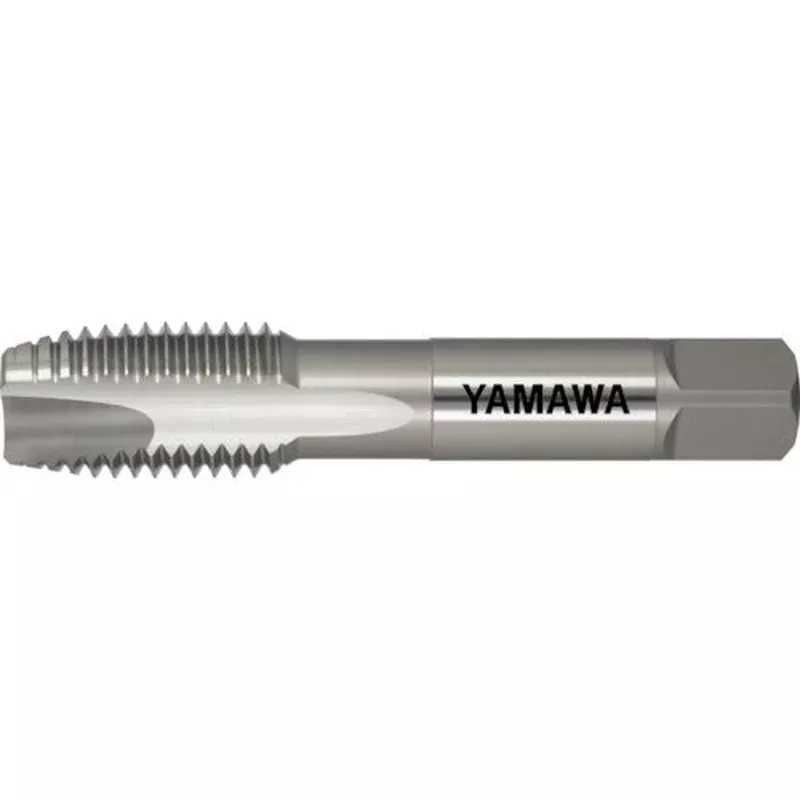

Features A tap suitable for high hardness materials of 30 to 45 HRC, such as forged products of high carbon steel and alloy steel, tempered materials, and mold materials. Durability has been significantly improved by using a cutting edge shape suitable for difficult-to-cut materials and materials with excellent wear resistance.
Use For through-hole machining. Work material: High carbon steel, tempered steel (25-35HRC), tempered steel (35-45HRC).
Specification Accuracy: P5Accuracy notation: P classNominal size: M24Pitch (mm): 3Thread length (mm): 39Overall length (mm): 120Shank diameter (mm): 19Shank square part (mm): 15 Pilot hole diameter (mm): 21.1 Number of biting threads: 4.5 threads Processing thread: metric thread Surface treatment: Non-coating Number of grooves: 3
Specification2 Shank length: 55mm Shank square length: 18mm
Material/Finish High speed tool steel: Cobalt HSS (HSS-Co)
Set contents/accessories
caution
