DESCRIPTION
52 mm height with detachable safety lock pin and safety plate

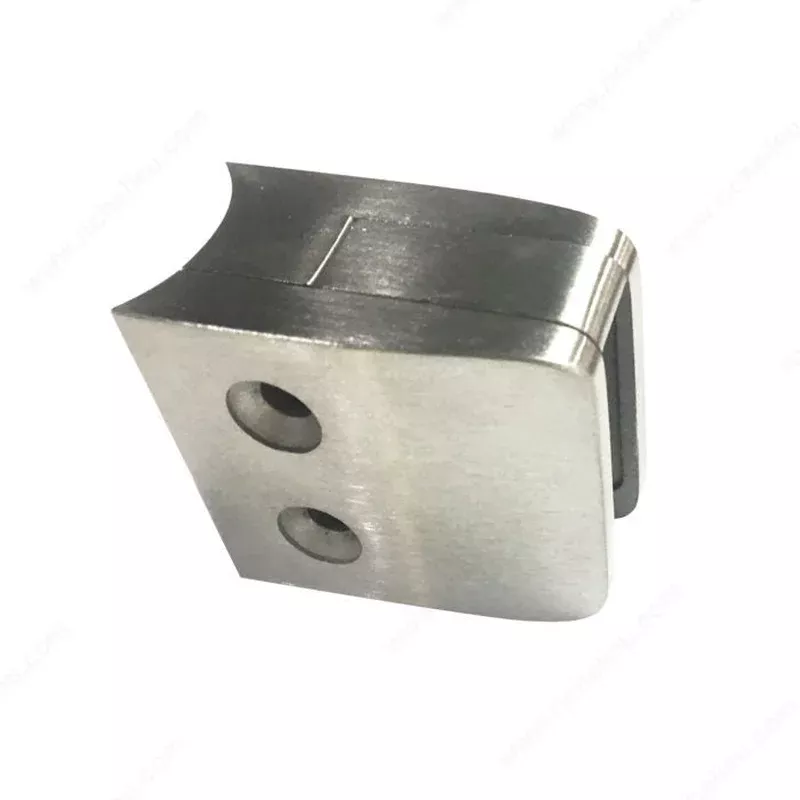

Set of four square clamps for installation of a glass panel between two posts.The optional safety lock pin is included to keep the glass in place and prevent the glass from sliding.An optional safety plate for face mount installation of posts included — no pre-drilling required.A set of protective joints, sold separately, is required for installation.
ADVANTAGES AND BENEFITS
Increases glass stability when used with safety plate or safety lock pin.
No glass drilling required when using the safety plate.
End plate is equipped with rubber stops, to prevent the glass from moving after installation, even if used without the safety lock pin.
TECHNICAL SPECIFICATIONS
Type of Mounting
Wall Mount, Post Mount
Recommended Location Usage
Interior, Exterior
Finish
Stainless Steel
Glass Drilling
Optional
Height
70 mm
Length
55 mm
Material
Stainless Steel: 316
Baluster Post Size
40 mm x 40 mm (1 9/16″ x 1 9/16″)
Adjustment
Fixed Position
Category
Clamps
Baluster Post Type
Square Tube
APPLICATION
Ideal for glass railings and ramp guardrails.
INCLUDED PRODUCT(S)
Square clampSafety pinMoveable security plateMounting screwsPlastic screw cover
