The Mini-Undercut+ anchor is an internally threaded, self-undercutting anchor designed for performance in cracked and uncracked concrete. Suitable base materials include post-tension concrete (PT slabs), hollow-core precast concrete, normal-weight concrete, sand-lightweight concrete and concrete over steel deck. The Mini-Undercut+ anchor is installed into a pre-drilled hole with a power tool and a setting tool. The result is an anchor which can provide consistent behavior at shallow embedments as low as 3/4 of an inch. After installation a steel element is threaded into the anchor body

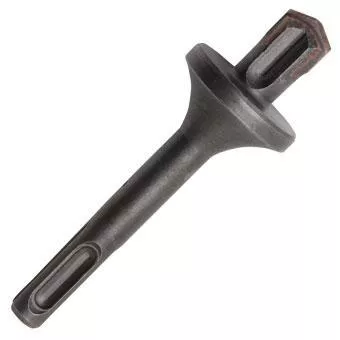

Specifications
| Brand Name | DeWalt | Item Name | Drill Stop Bit |
| Size | 5/8 x 3/4 in | Length | 3-51/64 in |
| Shank Size | 25/64 in | Shank Type | SDS Plus |
| Weight | 0.247 lb | For Use With | Rotary Hammer Drills |
| Standards | ICC-ES ESR-3912 Listed | Application | For Cracked and Uncracked Concrete |
| UPC | 075352307114 |
