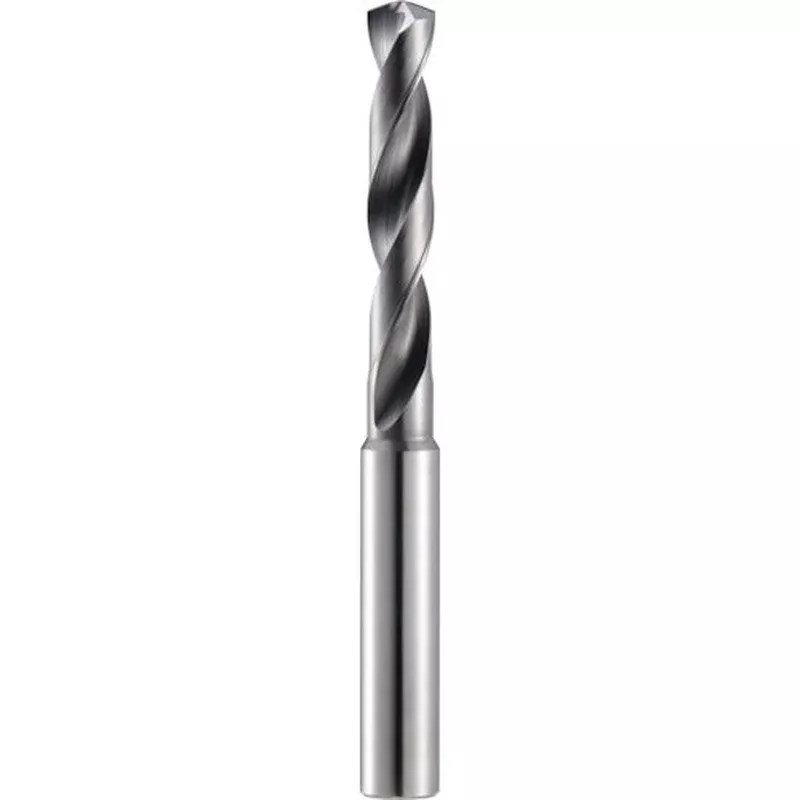

Features Achieved good bite with new thinning shape. New margin shape reduces wear and improves machined surface accuracy. Excellent chip evacuation due to smoothing treatment.
Use Work material: For general steel, cast iron. Effective machining depth: 4 x Dc. Work material: carbon steel, alloy steel.
Specification Blade diameter (mm): 9.2Groove length (mm): 57Overall length (mm): 108Shank diameter (mm): 10Effective machining depth: 4DcHelix angle ( ): 30Surface treatment: can be
Specification2 High-precision solid drill Effective drilling depth: 4 x Dc
Material/Finish Fine particle cemented carbide (Carbide)
Set contents/accessories
caution
