Product Description

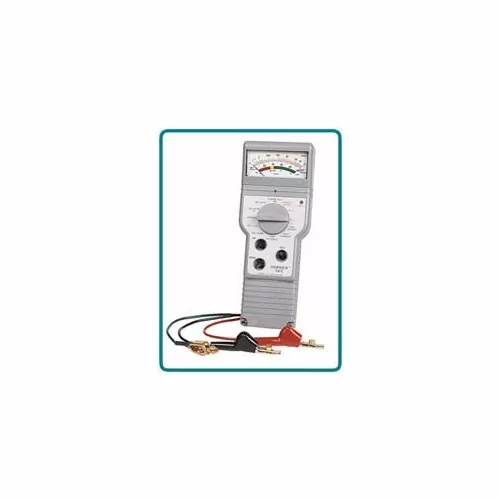

GREENLEE SIDEKICK T&N REPAIREDFEATURESDetermines stressed noise susceptibility of dry and working pairs. Measures resistance, AC/DC volts, and capacitive kick. Provides tone for twisted pair or crossed conductor identification. Single setup for testing Tip-Ring, Tip-Ground, and Ring-Ground. Minimal drying effect in all ranges. Field replaceable leads. Soft case with adjustable strand hook. Low Battery indicator light. Five Transmission and Noise TestsBENEFITSIncreased testing capabilities. Reduces repeat service calls. Eliminates service interruptions. Works on any twisted pair application. Increases technician productivity. Reduces training time. Provides quick return on investment. Reduces the number of test sets requiredThe new Sidekick T&N combines the functions of the Sidekick 7B plus the features of Transmission and Noise testing. The result is an even more versatile test set that identifies frequently missed faults as well as tests and qualifies the transmission quality of POTS lines. The additional features include:Loop Current testing Circuit Loss testing Metallic Noise testing Power Influence testing Load Coil detection The familiarity of the Sidekick’s analog meter and rugged, lightweight design, combined with five new test functions, provide quality loop testing for POTS lines. SPECIFICATIONS Dimensions (LxWxH) 10.75 x 4.25 x 2.5 inchesWeight (batteries, test leads, wand and receiver) 2 lbs.Resistance Rx1: Reads 0 to 2000 ohms Rx1,000: Reads 0 to 2 megohms Rx10,000: Reads 0 to 20 megohmsDC Voltage 0 to 100 Volts DCAC Voltage 0 to 200 VrmsCircuit Noise0 to 90 dBrnCircuit Loss-15 to +1 dBPower Influence50 to 100 dBrnC Load Coil Detector Up to 3 or 4 load coilsLoop Current0 to 100 mAStress Test 0 to 90 dBrnOperating Temperature -20C to +60CPower Four AA batteriesPart Number 1137-5000
